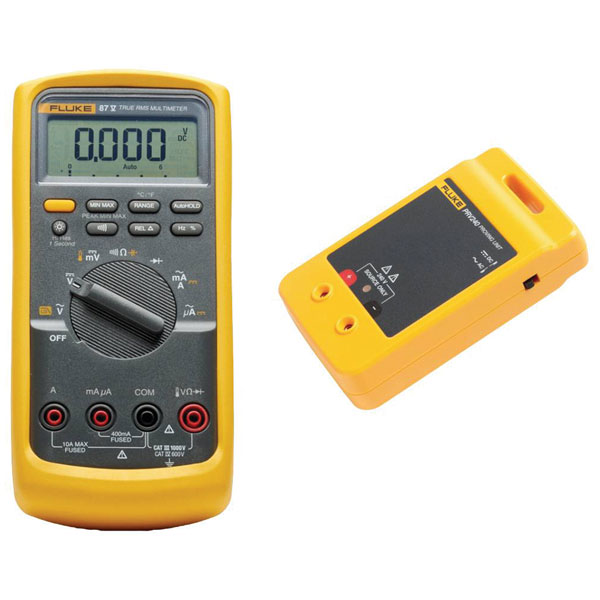

Fluke-87-5 Industrial True RMS digital multimeter
A multimeter with a lot of measurement error and search capabilities to diagnose and solve problems on motor drives, automation, electronics and electro mechanics. At the press of a button the Fluke 87-5/EUR blocks unwanted high frequencies, which are generated by the drive electronics of motors, making possible a precise and stable recording of the most important measurements for motors.
PRV240 test unit
.
| Type |
Multimeter |
| A AC reading range (min.) |
0.1µA |
| A DC reading range (max.) |
10A |
| AC resistance |
10MΩ |
| Amperage reading range AC (max.) |
10A |
| Amperage reading range DC (min.) |
0.1µA |
| Basic accuracy |
0.05% |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Current reading |
AC/DC |
| Dc Resistance |
10MΩ |
| Dim |
(W x H) 98 mm x 201 mm |
| Display |
Digital |
| Display (counts) |
20000 |
| Frequency Range |
45 Hz - 20kHz |
| Frequency reading range |
0.01 Hz - 200kHz |
| Height |
201mm |
| Interfaces |
none |
| Measurement type (details) |
True RMS |
| Misc Attribute |
FLK-87V-EUR/PRV240 |
| Power supply (details) |
9 V block |
| Reading range - capacity |
0.01 nF - 9999µF |
| Reading range - resistance |
0.1 Ω - 50MΩ |
| Temperature reading range (max.) |
+1090°C |
| Temperature reading range (min.) |
-200°C |
| V AC reading range (max.) |
1000V |
| V AC reading range (min.) |
0.1mV |
| Voltage DC reading range (max.) |
1000V |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
0.1mV |
| Width |
98mm |
