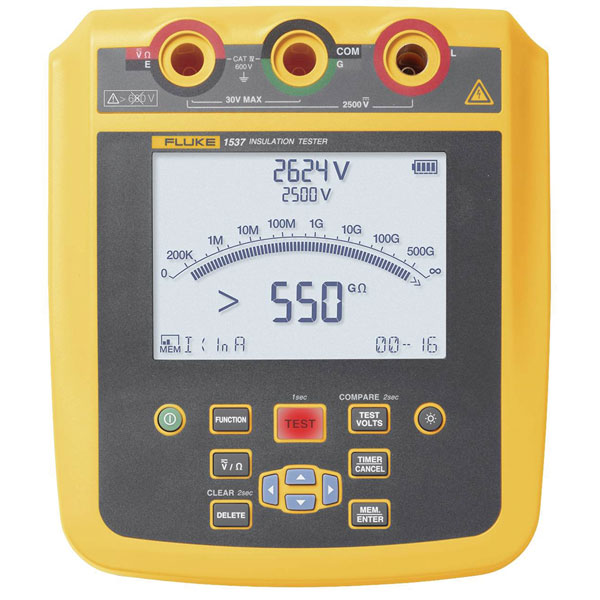

This measuring device offers finely adjustable test voltages from 250 to 2,500 V, resistance measurements up to 500 GΩ and a short-circuit current up to 5 mA and thus enables fast and stable measurements. Improve productivity and plant safety with a single tool that simplifies troubleshooting and provides fast and accurate results.
With intelligent measurement functions such as automatic calculation of the polarization index (PI) and dielectric absorption rate (DAR), wide measuring ranges and high security acc . To CAT IV 600 V and the integrated voltage alarm, the Fluke 1537 offers reliable and stable isolation tests with a compact device. Additional functions like voltage and resistance measurements for DC and AC current and simple data management with the software package included in the delivery make it the best choice for insulation tests. The insulation measuring device 1537 with extended functions for service technicians, electricians and companies who service motors, transformers, switch cabinets and solar systems for example.
| Type |
Insulation Tester |
| Maximum Capacitance |
Not Applicable |
| Maximum Resistance |
Not Applicable |
| Display Type |
Digital |
| Analogue bar graph display |
true |
| Background lighting LC-indication |
true |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Current supply |
Battery |
| Data hold |
false |
| Dim |
(L x W x H) 93 x 211 x 184 mm |
| External voltage detection at OFF-state |
false |
| Height |
184mm |
| Indication |
Analogue/digital |
| Insulation resistance (max.) |
500 GΩ |
| Interface |
true |
| IP Rating |
IP40 |
| Isolation resistance measuring range |
0.001 - 500000MOhm |
| Length |
93mm |
| Low resistance measurement |
true |
| Measured value memory |
true |
| Nominal test voltage 10 kV |
false |
| Nominal test voltage 100 V |
false |
| Nominal test voltage 1000 V |
true |
| Nominal test voltage 15 kV |
false |
| Nominal test voltage 250 V |
true |
| Nominal test voltage 2500 V |
true |
| Nominal test voltage 500 V |
true |
| Nominal test voltage 5000 V |
false |
| Nominal test voltage adjustable |
true |
| Nominal test voltage adjustable with ramp function |
true |
| Overvoltage protector testing |
true |
| Power supply (details) |
8x AA battery |
| Reading category |
CAT IV 600 V |
| Reading range - resistance |
0 Ω - 60.00kΩ |
| Reading Type |
Insulation resistance |
| Voltage measurement |
true |
| Voltage reading range (max.) |
600V |
| Voltage reading range (min.) |
0V |
| Width |
211mm |
