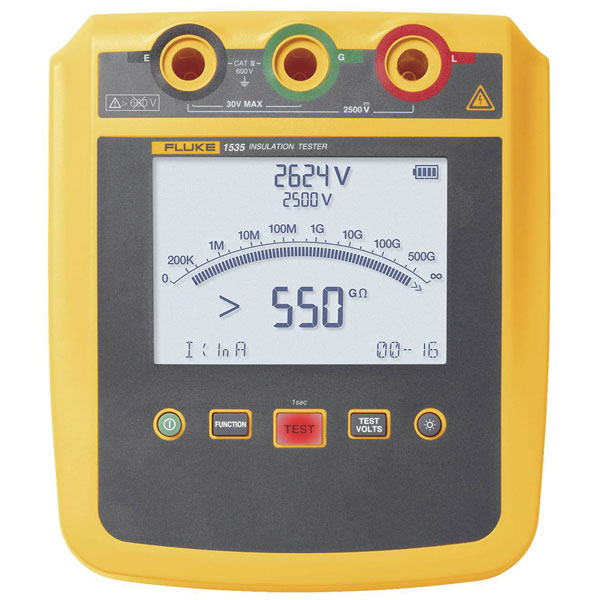

Fluke 5592398 1535 Insulation Tester 250-2500 V, 500 GΩ, 1 pc

This measuring instrument offers selectable test voltages from 250 to 2,500 V and resistance measurements up to 500 GΩ for fast and stable measurements. Improve productivity and plant safety with a single tool that simplifies troubleshooting and provides fast and accurate results. With the user-selectable test voltage, intelligent measurement functions such as automatic calculation of the polarization index (PI) and dielectric absorption rate (DAR), wide ranges and high security acc  . To CAT IV 600 V and the integrated voltage alarm, the Fluke 1535 offers reliable and stable insulation tests with a compact device. The insulation measuring device 1535 for service technicians, electricians and companies who service motors, transformers, switch cabinets and solar systems for example.

Type	Insulation Tester
Maximum Capacitance	Not Applicable
Maximum Resistance	Not Applicable
Display Type	Digital
Analogue bar graph display	true
Background lighting LC-indication	true
Calibrated to	Manufacturer's standards (no certificate)
Current supply	Battery
Data hold	false
Dim	(L x W x H) 93 x 211 x 184 mm
External voltage detection at OFF-state	false
Height	184mm
Indication	Analogue/digital
Insulation resistance (max.)	500 GΩ
Interface	false
IP Rating	IP40
Isolation resistance measuring range	0.001 - 500000MOhm
Length	93mm
Low resistance measurement	false
Measured value memory	false
Nominal test voltage 10 kV	false
Nominal test voltage 100 V	false
Nominal test voltage 1000 V	true
Nominal test voltage 15 kV	false
Nominal test voltage 250 V	true
Nominal test voltage 2500 V	true
Nominal test voltage 500 V	true
Nominal test voltage 5000 V	false
Nominal test voltage adjustable	false
Nominal test voltage adjustable with ramp function	false
Overvoltage protector testing	true
Power supply (details)	8x AA battery
Reading Category	CAT IV 600 V
Reading Type	Insulation resistance
Voltage measurement	false
Width	211mm
