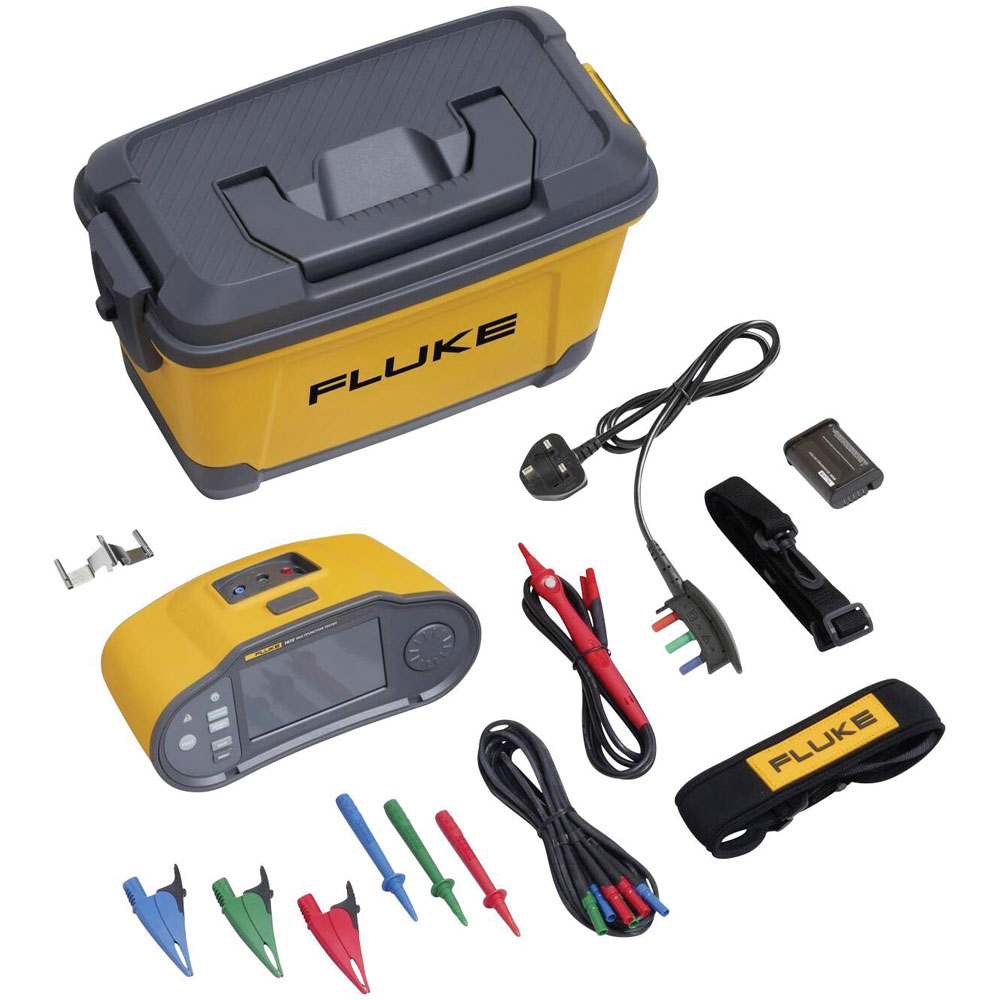

Fluke 5581068 1672 SCH FTT Electrical tester for spray zones in food production

The multifunction installation tester Fluke 1672 revolutionizes your way of working. With ergonomic design, intuitive user interface, integrated data management features and comprehensive reporting software, the 1672 sets the new standard for an integrated installation testing solution. Use the 1670 series installation testers to check the safety of electrical installations in residential, commercial and industrial applications and fulfill the requirements of IEC 60364 and DIN EN IEC 61557 and DIN VDE 0100-600. The multi-functional installation testers of the series Fluke 1670 optimize the setup and preparation of the tests with an intuitive user interface and a color touch-screen with a high resolution. You enter location information, create test routes directly on the tester or on the PC, and edit this information directly in the tool during the checks so that the data used is correct. .

Type	Electrical Tester
Maximum Capacitance	Not Applicable
Maximum Resistance	Not Applicable
Display Type	Digital
Calibrated to	Manufacturer's standards (no certificate)
Curve shape at RCD/FI testing	For earth leakage switch type A, F
Detection short-circuit current/overcurrent protection	true
Earth loop measurement	false
Earthing measurement	false
Field rotation test	true
Indication	Graphic
Interface	true
Interfaces	1x USB-C®
Isolation resistance measurement	true
Isolation resistance measurement with ramp function	false
Limit value indication	true
Loop measurement without RCD/FI release	true
Loop resistance/impedance measurement	true
Low resistance measurement	true
Low resistance measurement with ramp function	false
Mains internal resistance measurement	true
Measured value memory	true
Measuring of leakage currents with adaptor	false
Memory	Yes
Misc Attribute	1672 SCH FTT
Overvoltage protector testing	false
PRCD testing type S, type K	true
Printer connection	false
Printer integrated	false
RCD/FI analysis function	true
RCD/FI testing	true
RCD/FI testing with rising residual current	true
Remote control for testing device	true
Resistances of isolating floors and walls	false
Selective earthing measurement	false
Specific earthing measurement	false
Structured measured value memory	true
Test procedure	manual
Testing of charging devices E-Mobility, simulation of vehicle status	false
Testing of IMDs and RCMs	false
Voltage Supply	Rechargeable
