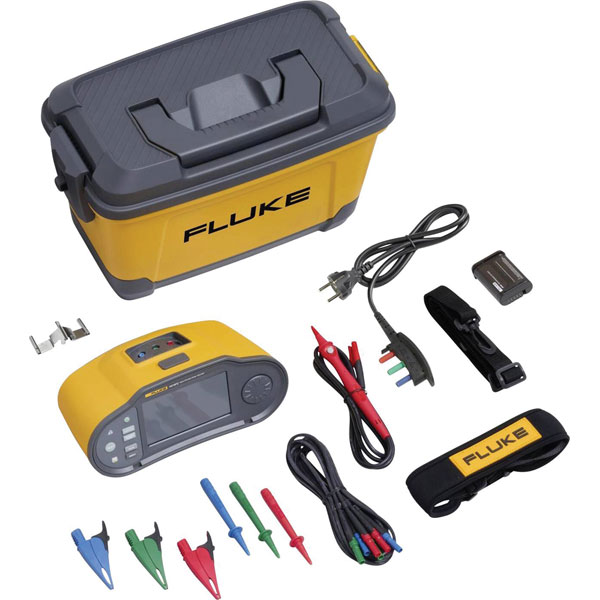

The multifunction installation tester Fluke 1673 FC revolutionizes your way of working. The Fluke 1673 FC multifunction installation tester offers all the functions of the 1672 plus earth resistance testing, auto-test function and compatibility with Fluke Connect. With ergonomic design, intuitive user interface, built-in data management features, wireless connectivity, and comprehensive reporting software , the 1673 FC sets the new standard for an integrated installation testing solution.
Use the 1670 series installation testers to check the safety of electrical installations in residential, commercial and industrial applications and fulfill the requirements of IEC 60364 and DIN EN IEC 61557 and DIN VDE 0100-600. This allows you to perform your required checks up to 30% faster, complete documentation up to 50% faster, and trust the collected data. The multi-functional installation testers of the series Fluke 1670 optimize the setup and preparation of the tests with an intuitive user interface and a color touch-screen with a high resolution. You enter location information, create test routes directly on the tester or on the PC, and edit this information directly in the tool during the checks so that the data used is correct.
| Type |
Electrical Tester |
| Maximum Capacitance |
Not Applicable |
| Maximum Resistance |
Not Applicable |
| Display Type |
Digital |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Curve shape at RCD/FI testing |
For earth leakage switch type A, F and type B, B+ |
| Detection short-circuit current/overcurrent protection |
true |
| Earth loop measurement |
true |
| Earthing measurement |
true |
| Field rotation test |
true |
| Indication |
Graphic |
| Interface |
true |
| Isolation resistance measurement |
true |
| Isolation resistance measurement with ramp function |
false |
| Limit value indication |
true |
| Loop measurement without RCD/FI release |
true |
| Loop resistance/impedance measurement |
true |
| Low resistance measurement |
true |
| Low resistance measurement with ramp function |
false |
| Mains internal resistance measurement |
true |
| Measured value memory |
true |
| Measuring of leakage currents with adaptor |
true |
| Memory |
Yes |
| Misc Attribute |
1673FC SCH |
| Overvoltage protector testing |
false |
| PRCD testing type S, type K |
true |
| Printer connection |
false |
| Printer integrated |
false |
| RCD/FI analysis function |
true |
| RCD/FI testing |
true |
| RCD/FI testing with rising residual current |
true |
| Remote control for testing device |
true |
| Resistances of isolating floors and walls |
false |
| Selective earthing measurement |
false |
| Specific earthing measurement |
false |
| Structured measured value memory |
true |
| Test procedure |
automated |
| Testing of charging devices E-Mobility, simulation of vehicle status |
true |
| Testing of IMDs and RCMs |
false |
| Voltage Supply |
Rechargeable |
