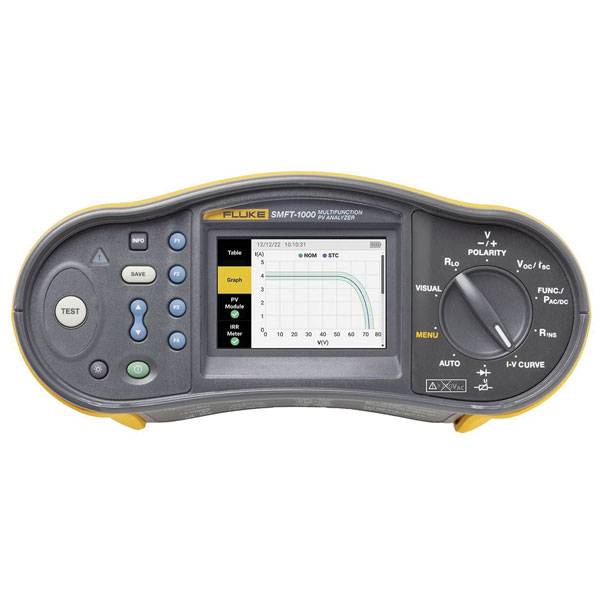

Fluke 5280005 SMFT-1000/KIT PV analyser Versatile solar testing kit

Check with the multi-functional PV power analyzer Fluke SMFT-1000/KIT whether PV systems deliver optimum performance and work safely. The SMFT-1000/KIT was developed for PV experts who install, commission and maintain systems with up to 1000 V DC. It offers a complete solution for PV systems, which fulfills the requirements of the standard IEC 62446-1-1. Measurement data from installation and commissioning tests on solar systems can be easily imported, organized and analyzed with the Fluke TruTest™ software. This makes it easy to create reports without having to take a laptop to the location.

Type	Testing Kit
Maximum Capacitance	Not Applicable
Maximum Resistance	Not Applicable
Display Type	Digital
Calibrated to	Manufacturer's standards (no certificate)
Compensation of measuring line resistance	Manual
Continuity measurement current	200 - 400mA
Continuity resistor	0.2 - 2000Ohm
Current voltage curve trace	true
Degree of protection (IP)	IP40
Earth fault measurement	true
External voltage detection	true
Fill factor measurement (FF)	true
Height	100mm
Insulation resistance measurement voltage	50 - 1000V
Internal serial resistance measurement Rs	false
Inverter efficiency measurement	true
Isolation resistance measuring range	0.2 - 999MOhm
Length	250mm
Max. voltage measuring circuit category	1000V
Measured value memory	true
Measurement Maximum Power Point (MPP)	true
Measurement of solar radiation	true
Measuring circuit category	CAT III
Method of current voltage curve trace	Other
Misc Attribute	FLK-SMFT-1000/KIT
Module database	true
Open circuit voltage measurement Uoc	5 - 1000V
Parallel line resistor measurement Rp	false
Peak performance measurement (Ppk)	false
Performance ratio (PV)	N/A
Polarity check	true
Power measurement	AC/DC
Short circuit current measurement Isc	0.2 - 20A
Temperature measurement	true
Transposition to NOCT	true
Transposition to STC	true
Type of interface	USB
Type of power supply	Battery
Weight	1.4kg
Weight including battery-pack	1.4kg
Width	125mm
With display	true
With remote control	false
