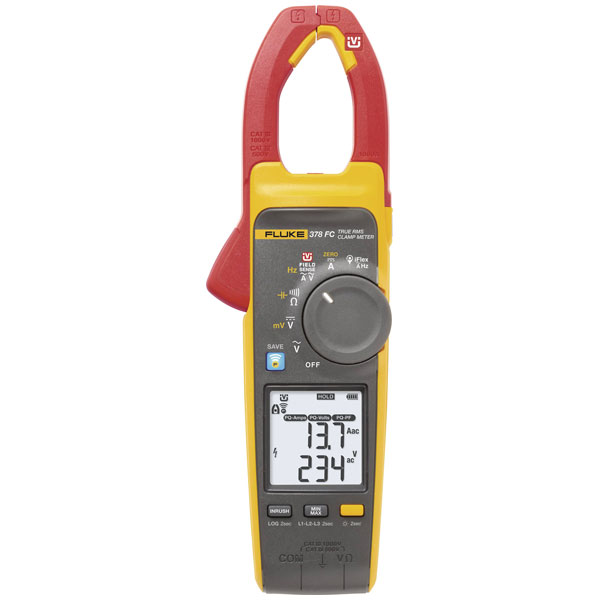

Fluke 5225723 Clamp Meter True-RMS Wireless AC/DC Voltage

The Fluke 378 FC True RMS Clamp Meter is designed to measure cables faster and more safely – without touching live wires thanks to FieldSense™ technology. With the clamp meter you can measure voltages and currents exactly. Simply connect the black measuring line to an electrical ground point, place the jaws of the current clamp around the conductor and read the voltage and current measured values on the display. The 378 includes a power quality check that quickly indicates whether the problem is with the power supply or the connected device.

Type	Clamp meter
Analogue bar graph display	false
Calibrated to	Manufacturer's standards (no certificate)
Capacitance Measurement	true
Continuity test	true
Current measuring range, AC	0.1 - 2500A
Current measuring range, DC	0.1 - 1000A
Degree of protection (IP)	IP30
Frequency measurement	true
Harmonics measurement	false
Indication	Digital
Interface	true
Jaw Opening	34mm
Leakage current measuring	false
Max. voltage measuring circuit category	600V
Measured value memory	true
Measurement in cables with for- and back conductor	false
Measuring circuit category	CAT IV
Measuring range selection	Automatic
Misc Attribute	378 FC/E
Multiple display	false
Power measuring	false
Resistance measuring range	true
Temperature measurement	false
True RMS measurement	true
Type of current	AC/DC
Version as adaptor to connect to multi meter	false
Voltage measurement, AC	true
Voltage measurement, DC	true
With display backlight	true
