Robust. Reliable. Exactly.
Fluke knows all sorts of mishaps in applications – measuring instruments fall down, are subject to shock, are knocked over or someone is stepping on them. You should not need to replace a meter just because it fell off the workbench or was exposed to water or dirt.

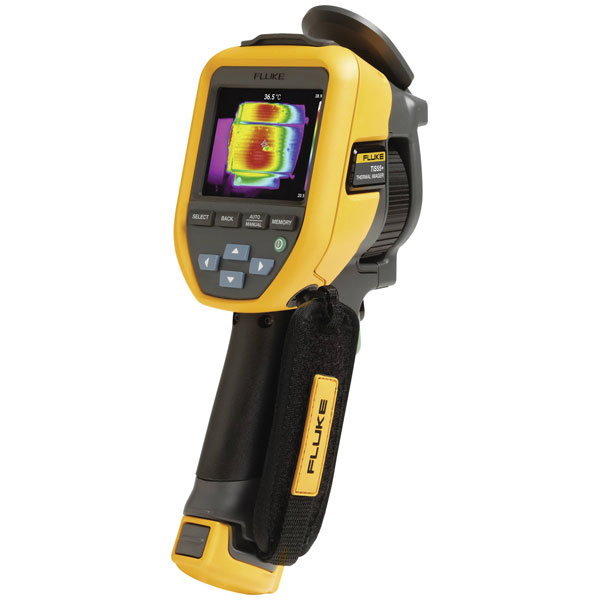

That's why we designed the TiS55+ thermal imager to withstand a 2m drop and to IP 54 for dust and splash protection. You need to be sure that your camera is always ready to use.
No need for notepads
The many inspections you perform on a daily basis can mean that you don't remember exactly where you saw what was happening.
You may have a notepad with you in this case. The TiS55+ Thermal Imager includes personal wizards, so you can finally do without your hand-made notes, because you can add all the information you need to the images you take, including:
Voice notes
· Max. 60 seconds recording time per thermal image
· Accurately describe your exam results in real time
IR-PhotoNotes
· Photo recordings of device numbers and other features
·
Use as a thought guide when viewing the thermal images on the Computers
Asset Tagging
· Sort the thermal images by equipment
· First scan QR code to device/system, then take thermal images
· Connect the camera to the computer and sort the thermal images by device/system view
.
| Type |
Case |
| Display Resolution |
640 x 480 Pixel |
| Accuracy ± °C |
2°C |
| Ambient temperature |
-10 - 50°C |
| Analogue video out |
false |
| Auto focus |
false |
| Auto orientation |
false |
| Basic accuracy |
2% |
| Battery powered |
true |
| Bluetooth interface |
true |
| Colour schemes |
6 |
| CompactFlash I card slot |
false |
| CompactFlash II card slot |
false |
| Degree of protection (IP) |
IP54 |
| Detector cooled |
false |
| Digital zoom |
N/A |
| Dim |
(L x W x H) 267 x 145 x 101 mm |
| Display diagonal |
3.5in |
| Display resolution (horizontal) |
640px |
| Display resolution (vertical) |
480px |
| Ethernet |
false |
| External power supply required |
false |
| Field of view (FOV) horizontal |
28° |
| Field of view (FOV) vertical |
20° |
| FireWire (IEEE1394) connection |
false |
| Focus stacking |
false |
| Frame rate |
9Hz |
| Frames per second (fps) |
9 |
| Gigabit Ethernet |
false |
| HDMI-connection |
false |
| Height |
101mm |
| Image averaging |
false |
| Increase image size |
false |
| Input voltage AC 50 Hz |
100 - 240V |
| Input voltage AC 60 Hz |
100 - 240V |
| Input voltage DC |
6 - 15V |
| Instantaneous field of view (IFOV) |
1.91m rad |
| Internal memory |
true |
| IP Rating |
IP54 |
| Length |
267mm |
| Max. battery duration |
3.5h |
| Memory units |
2 |
| MicroSD-card slot |
true |
| MiniSD-card slot |
false |
| Misc Attribute |
FLK-TIS55+ 9HZ |
| Optics |
28° x 20° |
| Power Consumption |
8.7W |
| Power supply (details) |
Mains operation via supplied power supply unit, universal adapter included in delivery. Output: 15 V DC, 2 A |
| Relative measurement accuracy |
2% |
| SD-card slot |
false |
| Sensor resolution (horizontal) |
256px |
| Sensor resolution (vertical) |
192px |
| Suitable for exchangeable lenses |
false |
| Temperature measuring range |
-20 - 50°C |
| Temperature reading range |
-20 up to +550 °C |
| Temperature reading range (max.) |
+550°C |
| Temperature reading range (min.) |
-20°C |
| Thermal image |
true |
| Thermal sensitivity at 30 °C |
0.04°C |
| Thermal-/visual image (in one image) |
true |
| USB connection |
true |
| Video recording |
false |
| Visual image |
true |
| Wave band |
8 - 14µm |
| Width |
145mm |
| Wi-Fi-compatible |
true |
| With built-in torch |
false |
| With communication interface RS-232 |
false |
| With communication interface RS-485 |
false |
| With digital alarm |
false |
| With humidity sensor |
false |
| With laser |
true |
| With laser distance measurement |
false |
| With memory function |
true |
| With stand holder |
false |
| With touch screen |
true |
