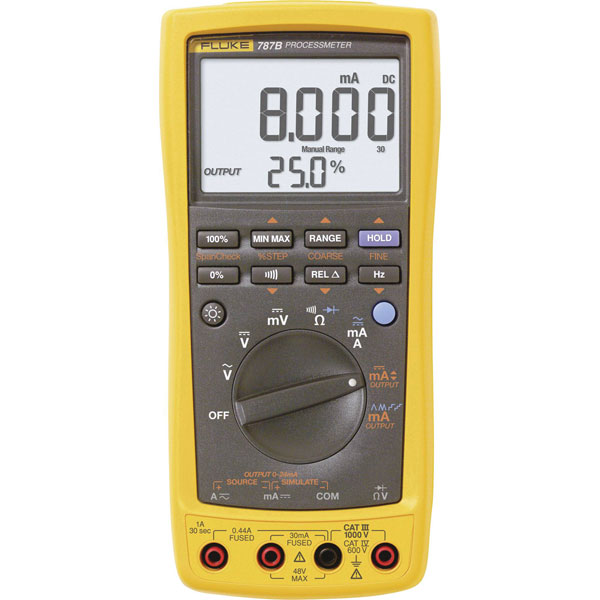

Fluke 4777186 787B handheld multimeter, 30000 count, CAT III 1000V, CAT IV 600V

The Fluke 787 ProcessMeter™ B extends your possibilities of troubleshooting, because this compact measuring device the performance of a digital multimeter with highest safety and a current loop calibrator combined. Building on the measuring functions of the robust digital multimeter Fluke 87 You have now with the 787 B also have the option of mA to measure, to give and simulate-and with accuracy and resolution, as you would expect from a current loop calibrator from Fluke. In short: the ideal measuring device for measurements and calibrations in current loop applications. With the Fluke Connect® App, technicians optional data directly from the place of wireless monitor, Record and share with your team, anytime, anywhere. An optional interface module is available.

Type	Multimeter
AC Voltage Max	1000V
DC Voltage Max	1000V
A AC reading range (min.)	0.001A
A DC reading range (max.)	1A
AC resistance	10MO
Amperage reading range AC (max.)	1A
Amperage reading range DC (min.)	0.001mA
Analogue bar graph display	false
Basic Accuracy	0.05%
Calibrated to	Manufacturer's standards (no certificate)
Calibration software	false
Current reading	AC/DC
Dc Resistance	10MO
Dim	(L x W x H) 50 x 100 x 203 mm
Display	Digital
Display Counts	30000
Frequency and pulse groups encoding	false
Frequency Range	45 Hz - 2kHz
Frequency reading range	0.5 Hz - 20kHz
Give pressure (external pressure pump)	N/A
Height	203mm
Indication	Digital
Interface	true
Interfaces	IR
Length	50mm
Lowest resolution current output	0.001 mA
Lowest resolution power sink	0.001 mA
Lowest resolution voltage output	N/A
Lowest resolution, AC current	1 µA
Lowest resolution, AC voltage	0.001 mV
Lowest resolution, DC current	N/A
Lowest resolution, DC voltage	0.001 mV
Lowest resolution, resistance	0.1 Ohm
Max. current measuring range, AC	1A
Max. current measuring range, DC	1A
Max. frequency	N/A
Max. resistance encoder	N/A
Max. resistance measuring range	40000000Ohm
Max. voltage measuring range DC	1000V
Measured value memory	false
Measurement type (details)	True RMS
Misc Attribute	787B
Multiple display	true
Number of Channels	1
Output current 0 mA ... 24 mA	true
Power sink (transmitter simulator) 0 mA ... 24 mA	true
Power supply (details)	4 x AA battery
Pressure measurement	false
Ramp and stair function	true
Reading range - resistance	0.1 Ω - 40 MΩMO
Resistor output	false
Simultaneous measuring and encoding	false
Thermal element RTD	false
Thermal element RTD Ni100	false
Thermal element RTD Ni1000	false
Thermal element RTD Pt100	false
Thermal element RTD Pt1000	false
Thermal element type B	false
Thermal element type E	false
Thermal element type J	false
Thermal element type K	false
Thermal element type L	false
Thermal element type N	false
Thermal element type R	false
Thermal element type S	false
Thermal element type T	false
Thermal element type U	false
True RMS measurement	true
V AC reading range (min.)	0.1mV
Voltage metering	AC/DC
Voltage output 0 mV ... 100 mV	false
Voltage output 0 V ... +/- 300 mV	false
Voltage output 0 V ... 10 V	false
Voltage output 0 V ... 15 V	false
Voltage output 0 V ... 3 V	false
Voltage reading range DC (min.)	0.1mV
Width	100mm
