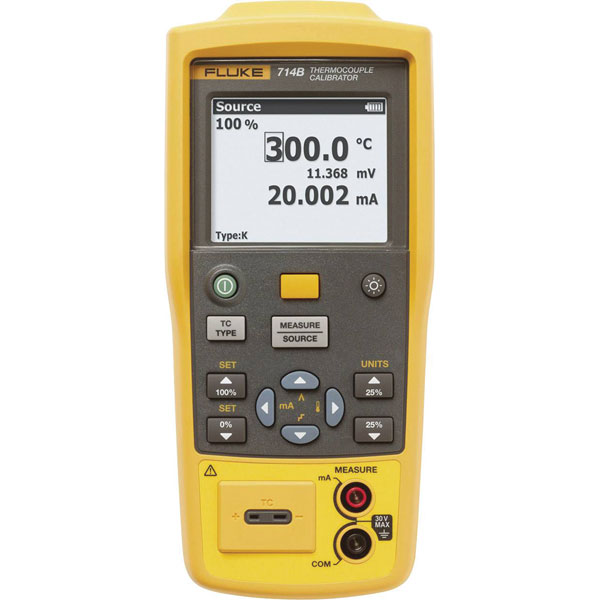

Fluke 4387869 714B calibrator temperature/voltage compact precise durable

Fluke
Order Code:

25-8833

Brand: Fluke MPN: 4387869 EAN-13: 0095969686419
Qty Unit Price (Ex VAT)
1+ £1461.34
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 14 days

For Technicians in the field of temperature calibration, which can be an extremely precise and easy-to-use temperature calibrator for thermocouples with a function of the Fluke 714 B is the ideal testing device.
Power supply 4 x AA battery (included)
Unit of measurement Voltage
Analogue bar graph display false
Calibrated to Manufacturer's standards (no certificate)
Calibration range (thermometer) -250 up to +2500°C
Calibration software false
Dim (L x W x H) 53 x 84 x 189 mm
Frequency and pulse groups encoding false
Give pressure (external pressure pump) N/A
Height 189mm
Indication Digital
Interface false
Length 53mm
Lowest resolution current output N/A
Lowest resolution power sink N/A
Lowest resolution voltage output 0.01 mV
Lowest resolution, AC current N/A
Lowest resolution, AC voltage N/A
Lowest resolution, DC current 1 µA
Lowest resolution, DC voltage 0.01 mV
Lowest resolution, resistance N/A
Max. current measuring range, AC N/A
Max. current measuring range, DC 0.024A
Max. frequency N/A
Max. resistance encoder N/A
Max. resistance measuring range N/A
Max. voltage measuring range DC 0.075V
Measured value memory false
Multiple display true
Number of Channels 1
Output current 0 mA ... 24 mA false
Power sink (transmitter simulator) 0 mA ... 24 mA false
Pressure measurement false
Ramp and stair function true
Resistor output false
Simultaneous measuring and encoding true
Thermal element RTD false
Thermal element RTD Ni100 false
Thermal element RTD Ni1000 false
Thermal element RTD Pt100 false
Thermal element RTD Pt1000 false
Thermal element type B true
Thermal element type E true
Thermal element type J true
Thermal element type K true
Thermal element type L true
Thermal element type N true
Thermal element type R true
Thermal element type S true
Thermal element type T true
Thermal element type U true
True RMS measurement N/A
Type Calibrator
Voltage output 0 mV ... 100 mV true
Voltage output 0 V ... +/- 300 mV false
Voltage output 0 V ... 10 V false
Voltage output 0 V ... 15 V false
Voltage output 0 V ... 3 V false
Width 84mm
