Fluke 3030923 VR1710 mains diagnostics tester 1-phase data logger

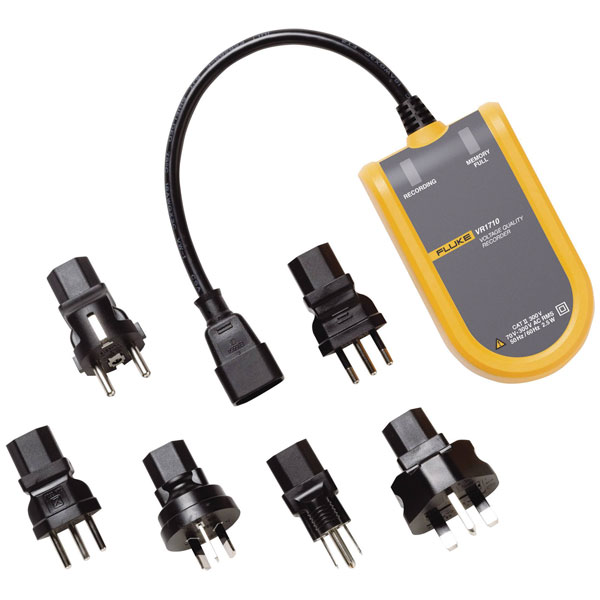

Data-logger for single-phase mains wiring for a quick and simple recording and analysis of the voltage quality. Quality parameters like effective mean value, transients, flicker and measurements up to 32nd harmonic are recorded by means of a user-defined averaging period from 3 s to 10 min. 6 mains adapters are enclosed with the set.

Type	Diagnostic Tester
Manufacturers Warranty	1 Year
Apparent power	false
Calibrated	Manufacturer's standards (no certificate)
Connector	IEC 320 C14
Current measurement	With current clamp meter/clamp adaptor
Current supply	Mains power supply
Display (details)	LED
Effective power	false
Harmonics measurement	false
Height	39mm
Indication	None
Interface	true
Interfaces	USB
Length	134mm
Measured value memory	true
Measurement Type	1-phase
Number of current input channels	4
Number of voltage input channels	4
PG recognition	Yes
Phase detection	Yes
Power Factor	false
Power/work	false
Reactive power	false
Reading Category	CAT II 300 V
Reading range - voltage	70 - 300V AC
Step angle (cos phi)	false
Voltage measuring range/AC direct	70 - 300V
Weight	207g
