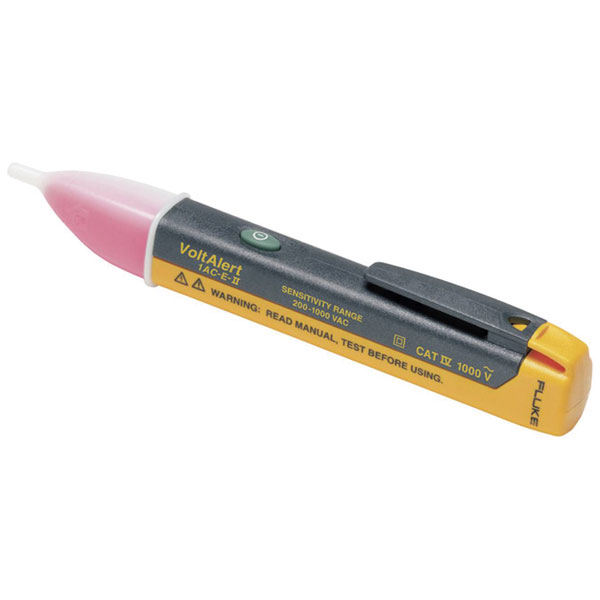

The pocket-sized voltage tester the next generation of contact-free voltage testers VoltAlert™ AC from Fluke is easy to use - simply touch the probe tips to a terminal strip, a socket or a current cable. When the probe tip lights up red and the device beeps, there's a voltage. Electricians, maintenance and security personnel, but also house owners can at work or at home Quick check whether a circuit voltage.
| Maximum Voltage |
1000V |
| Display Type |
LED |
| Background lighting LC-indication |
false |
| Blade Length |
9mm |
| Blade Width |
4mm |
| Calibrated |
Manufacturer's standards (no certificate) |
| Contactless voltage detection |
true |
| Continuity indication |
N/A |
| Continuity test |
false |
| Current supply |
Battery |
| Data hold |
false |
| Frequency Range |
45 Hz - 400 Hz |
| Indication of direction of field rotation |
false |
| Insulation Test Voltage |
CAT IV |
| Internal base load |
false |
| IP Rating |
IP40 |
| Length |
148mm |
| Load switchable |
false |
| Max. frequency |
400Hz |
| Measuring circuit category |
CAT IV |
| Measuring point lightning |
false |
| Min. frequency |
45Hz |
| Misc Attribute |
1AC-II 5PK |
| Probe tip protection |
false |
| Reading Category |
CAT IV 1000 V |
| Reading Type |
Phase |
| Resistance measurement |
N/A |
| Resistance measuring range |
N/A |
| Single pole phase indication |
true |
| Type |
Voltage Tester |
| Type of test |
1-pole |
| Usable at precipitation |
false |
| V AC reading range (min.) |
200V |
| Voltage indication |
Other |
| Voltage measuring range |
200 - 1000V |
| Weight |
35g |
