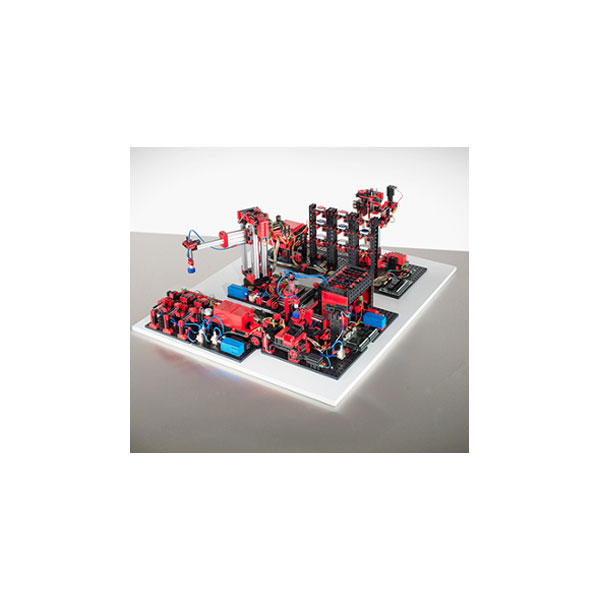

Fischertechnik 536634 Factory Simulation 24V

The Fischertechnik 536634 Factory Simulation 24V is a combination of the models Sorting Line With Colour Detection, Multi Processing Station With Oven, Automated High-Bay Warehouse and Vacuum Gripper Robot.

It has a self-contained material cycle: Workpieces are retrieved from the Automated High-Bay Warehouse, processed in the Multi Processing Station With Oven, then sorted by colour in the Sorting Line With Colour Detection and finally stored in the Automated High-Bay Warehouse again.

Connection to PLC control: The model has a circuit board with relays for reversing the direction of rotation of the motors. All inputs and outputs can be connected to a jack plug (26-pin, 2.54 mm pitch) or to series terminals with push-in terminals.

Current consumption: I = ca. 4,8A
Inputs digital: 22
Inputs analogue 0-10V DC: 1
Fast counting inputs: 5 or 10 (with direction detection)
Outputs 24V: 35

• Full production line simulation system
• Industrial automation processes
• Real-world factory modelling
• STEM manufacturing education
