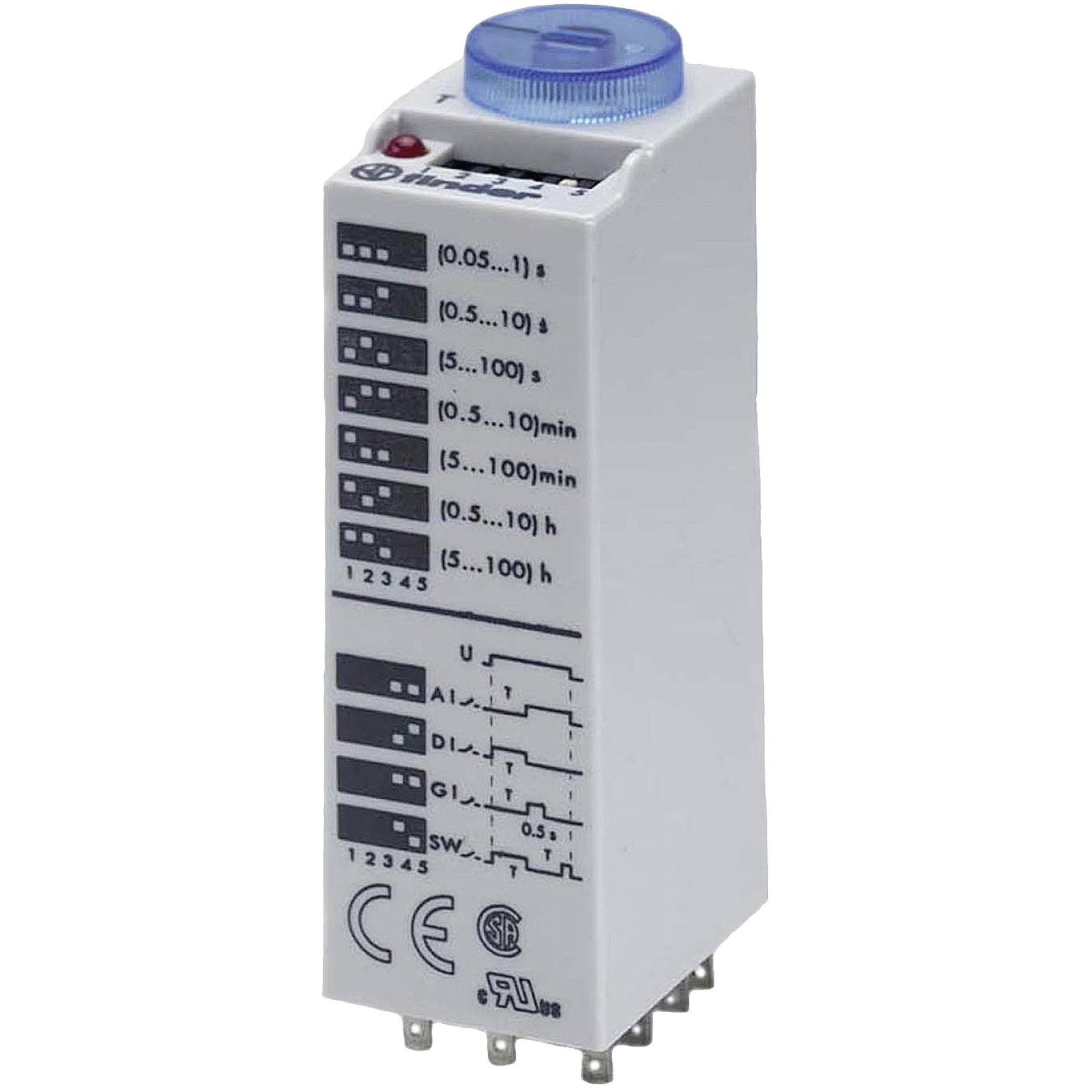

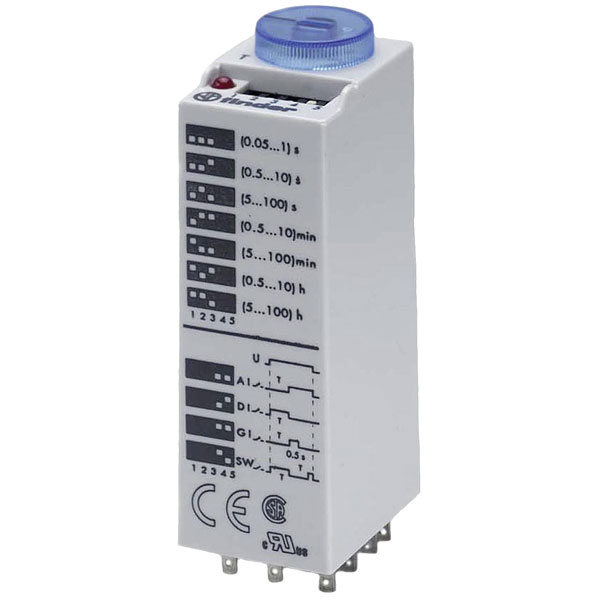

The Finder multifunction time delay relay model 85.02.8.240.0000 operates on 230 V AC with a time range of 0.05 seconds to 100 hours. It features two change-over contacts and is rail-mountable, making it versatile for various timing and delayed switching applications. Ideal for use in industrial automation, lighting control, and surge protection systems.
| Type |
TDR |
| Clock function, starting with pause, variable |
false |
| Clock function, starting with pulse, variable |
true |
| Connection |
Screw terminal |
| Contact Configuration |
2 change-overs |
| Contact Material |
AgNi |
| Depth |
27.7mm |
| Dim |
(L x W x H) 59.5 x 20.6 x 27.7 mm |
| EF003360 |
true |
| Function delay on de-energization |
false |
| Function delay-on energization |
true |
| Function flashing, starting with pause, fixed time |
false |
| Function flashing, starting with pulse, fixed time |
false |
| Function floating contact on de-energization |
false |
| Function floating contact on energization |
true |
| Function pulse shaping |
true |
| Function star-delta |
false |
| Height |
27.7mm |
| IP Rating |
IP40 |
| Length |
59.5mm |
| Max. switching capacity |
1750VA |
| Max. temperature |
+60°C |
| Min. temperature |
-20°C |
| Misc Attribute 2 |
Multifunction |
| Nominal Current |
10A |
| Number of outputs, delayed, change-over contact |
2 |
| Number of outputs, delayed, normally closed contact |
0 |
| Number of outputs, delayed, normally open contact |
0 |
| Number of outputs, undelayed, change-over contact |
0 |
| Number of outputs, undelayed, normally closed contact |
0 |
| Number of outputs, undelayed, normally open contact |
0 |
| Operating Voltage |
230V AC |
| Outputs, reversible delayed/undelayed |
false |
| Pluggable on auxiliary contact block |
false |
| Rated control supply voltage AC 50 Hz |
240 - 240V |
| Rated control supply voltage AC 60 Hz |
240 - 240V |
| Remote operation possible |
false |
| Suitable as remote control |
false |
| Suitable for DIN rail (top hat rail) mounting |
false |
| Suitable for front mounting |
false |
| Switching Capacity |
(AC1) 7 A/1750 VA/250V AC |
| Switching Current |
7A |
| Switching current (max.) |
10A |
| Switching voltage (max.) |
400V AC |
| Test Voltage |
Coil/contact 2000 V, between open contacts 1000 V, between adjacent contacts 1000 V, between mass and live parts 1500V |
| Time range |
7 ranges - 0.05 - 1 s/0.5 - 10 s/5 - 100 s/0.5 - 10 min/5 - 100 min/0.5 - 10 h/5 - 100 h |
| Time range (max.) |
100h |
| Time range (min.) |
0.05s |
| Type of electric connection |
Plug-in connection |
| Voltage type for actuating |
AC |
| Width |
20.6mm |
| With semiconductor output |
false |
