Finder 7M3884000312 7M Series Rail-mount electricity meter 80 A 2-way

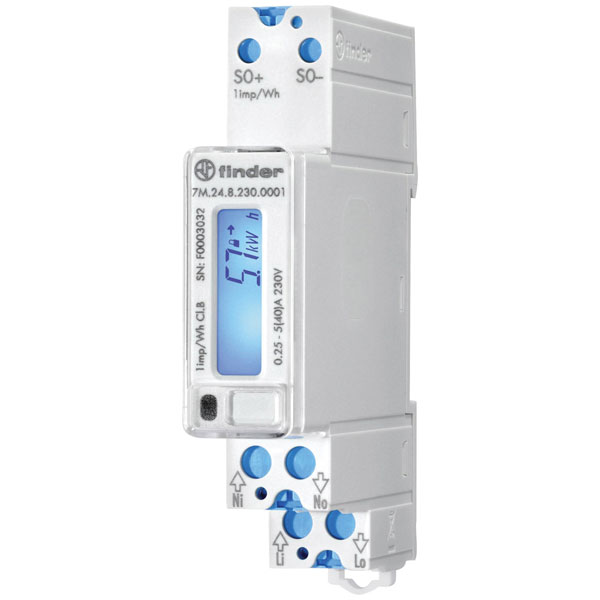

Image Representative of Range

Finder 7M3884000312 7M Series Rail-mount electricity meter 80 A 2-way

Finder
Order Code:

03-4516

Brand: Finder MPN: 7M3884000312 EAN-13: 8012823433233
Qty Unit Price (Ex VAT)
1+ £201.10
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Finder 7M.38.8.400.0312 is a 2-way rail-mount electricity meter designed for precise measurement of AC energy consumption up to 80 A. It features digital readings for easy monitoring and is suitable for both industrial and residential applications. This electricity meter ensures accurate energy tracking and efficient power management.
Display Type Digital
Accuracy Class B
Approval Measuring Instruments Directive
Calibrated true
Calibration Regenerated/calibrated
Counter type electronic
Current load 80A
Degree of protection (IP) IP50
Degree of protection (NEMA) N/A
Depth 63.9mm
EEC40 signature N/A
Energy type Effective power and reactive power
Escapement mechanism true
Frequency 50 - 60Hz
Height 90.4mm
Max. current (Imax) 80A
Measurement type load profile N/A
Misc Attribute 1 Direct measurement, external rate control
Misc Attribute 2 7M.38.8.400.0312
Model Direct measurement
Mounting method N/A
Nominal current (In) 5A
Nominal voltage (Un) N-L 184 - 265V
Number of positions total (counter) 7
Pole type Three conductor/four conductor
Pulse output Electrical
Pulse rate 500 - 500Imp/kWh (kvarh)
Pulse type S0
Special feature With lock code
Suitable For Purchase/supply
Tariff control Internal/external
Tariff type Multi-tariff
Type 2-way rail-mount electricity meter
Type of indication Digital
Type of interface M-bus (wired)
Type of meter Electronic
Width 52.2mm
Width in number of modular spacings 3
With lock code true
