Finder 7M.24.8.230.0010 energy meter Rail-mount 40A MID-certified

Finder
Order Code:

03-4510

Brand: Finder MPN: 7M.24.8.230.0010 EAN-13: 8012823429182
Qty Unit Price (Ex VAT)
1+ £70.77
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

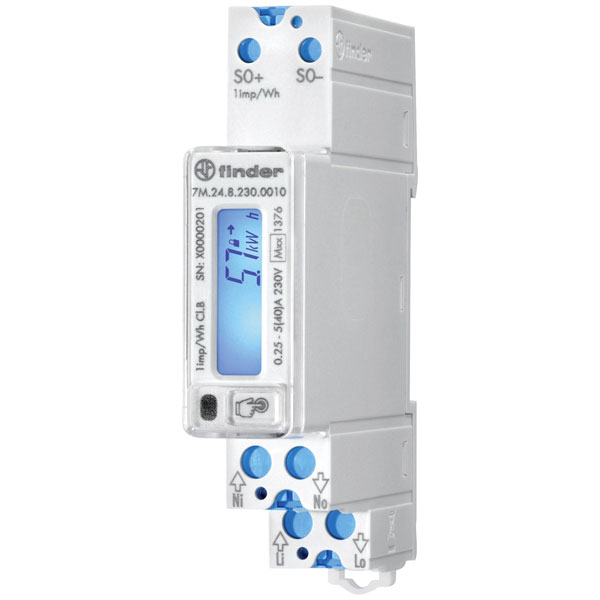

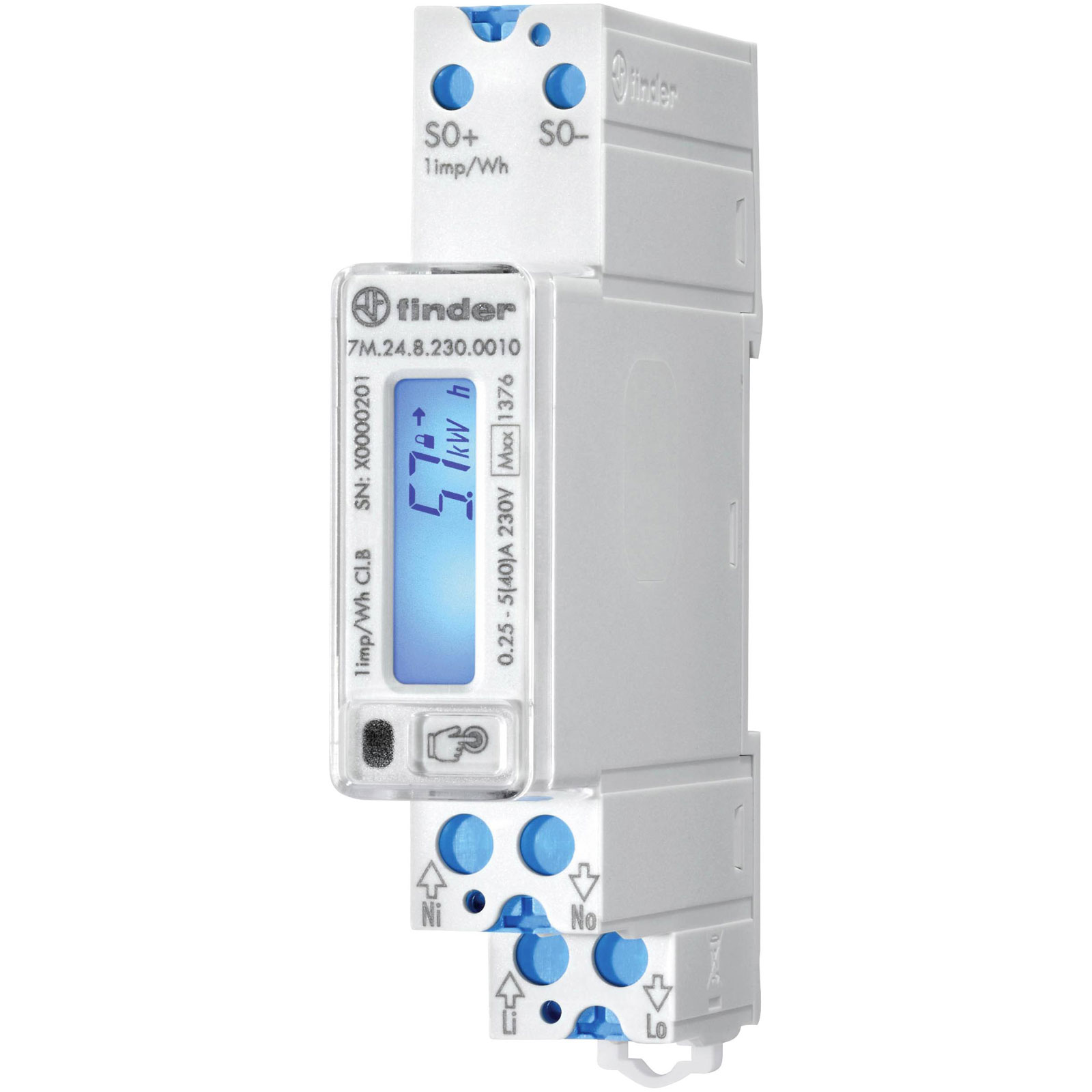

The Finder 7M.24.8.230.0010 is a digital 2-way rail-mount electricity meter, capable of handling up to 40 A and is MID-approved. This energy meter is ideal for accurately monitoring electrical consumption in residential or commercial settings. Common applications include tracking energy usage for cost management and compliance with energy regulations.
Accuracy Class 1/2
Approval Measuring Instruments Directive
Calibrated true
Current load 40A
Degree of protection (IP) IP50
Degree of protection (NEMA) N/A
Depth 63.9mm
Dim (L x W x H) 68.2 x 17.5 x 90.7 mm
Display range 999999.9 kWh
EEC40 signature N/A
Energy type Effective power and reactive power
Escapement mechanism true
Frequency 50 - 60Hz
Height 90.7mm
Length 68.2mm
Max. current (Imax) 40A
Measurement type load profile N/A
MID-approved Yes
Misc Attribute 2 For cap rail
Model Direct measurement
Mounting method N/A
Nominal current (In) 5A
Nominal voltage (Un) N-L 184 - 265V
Number of positions total (counter) 7
Operating Voltage 230V AC
Pole type Single phase
Pulse output Electrical
Pulse rate 1000 - 1000Imp/kWh (kvarh)
Pulse type S0
Recess width 17.5mm
Starting current 0.02A
Suitable For Purchase/supply
Tariff control N/A
Tariff type One-tariff
Type 2-way rail-mount electricity meter
Type of indication Digital
Type of interface None
Type of meter Electronic
Width 17.5mm
Width in number of modular spacings 1
With lock code true
