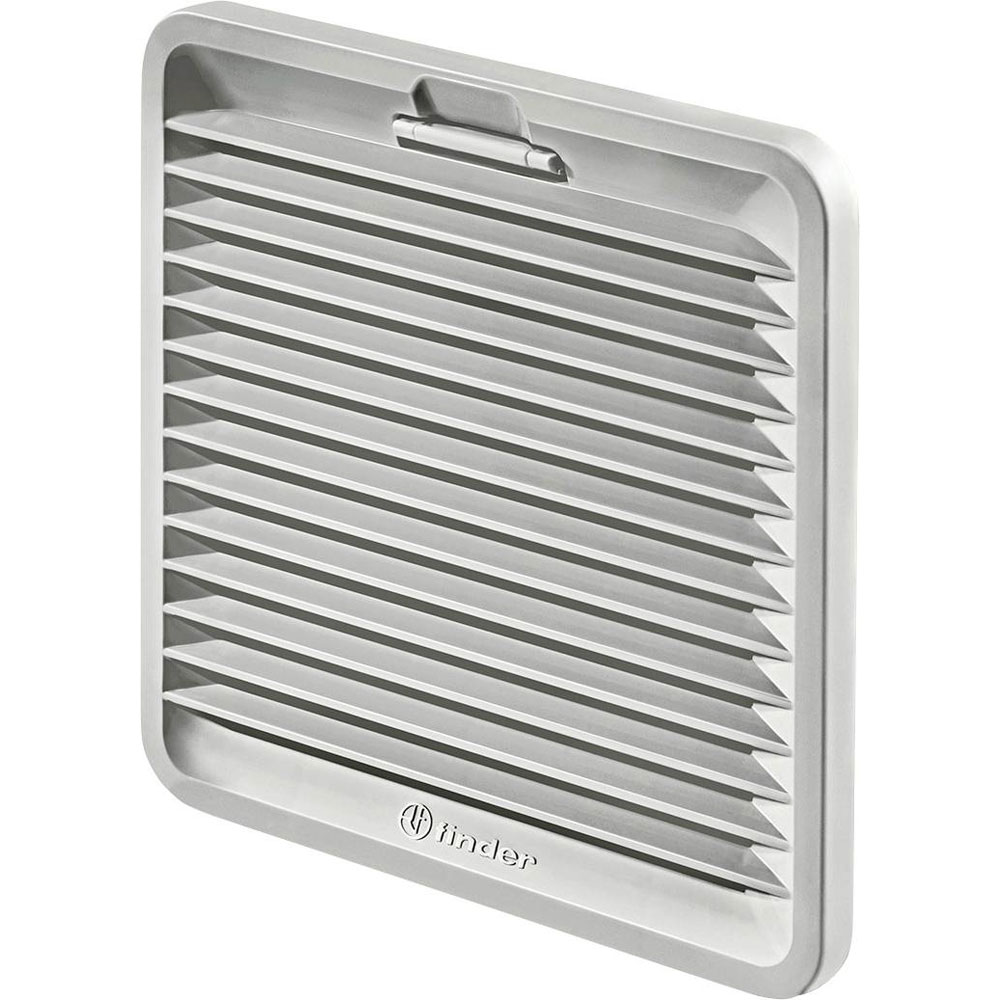

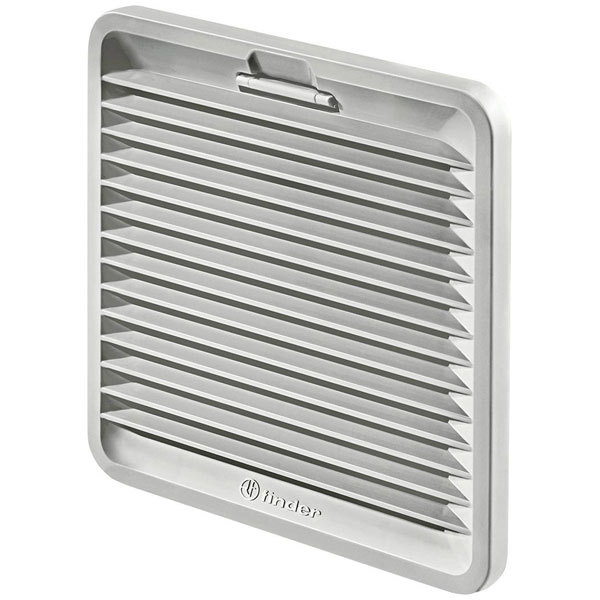

Finder 7F.30.8.230.1020 Fan and filter 120V AC 230V AC for electrical enclosure

Finder 7F.30.8.230.1020 fan and filter assembly, also referred to as 3389751 - Finder 7F3082301020, is specifically designed for electrical enclosures requiring effective thermal management. This product operates with dual voltage compatibility, accommodating both 120V AC and 230V AC systems, making it suitable for a variety of global engineering applications. The assembly ensures optimal airflow to prevent overheating of critical components within the enclosure, thereby enhancing performance and longevity of the electrical systems. It is typically used in industrial control panels, telecommunications equipment, and any setting where maintaining a stable thermal environment is critical. Its robust construction and reliable operation make it a dependable solution for maintaining consistent temperature in demanding settings.

Type	Fan and filter
Air circulator	true
Air flow rate	24m³/h
Built as slide-in ventilator	true
Colour	Grey
Connection	Push-in connector
Content	1
Degree of protection (IP)	IP54
Degree of protection (NEMA)	12
Depth	63.4mm
EMC-version	false
For Use With	Fans
Height	120mm
Lifespan	50000h
Maximum Temperature	55°C
Minimum Temperature	-30°C
Mounting method	Snap mounting
Noise emission	27dB(A)
Number of fans	1
Operating voltage AC 50 Hz	230 - 230V
Operating voltage AC 60 Hz	230 - 230V
Operating voltage DC	230 - 230V
RAL-number	7035
Rated power	23W
Roof ventilator	false
Suitable for 19 inch rack mounting	false
Suitable for wall built-in	true
Voltage type	AC
Volume flow, freeblowing	24m³/h
Width	120mm
With filter	true
With protective cover	false
