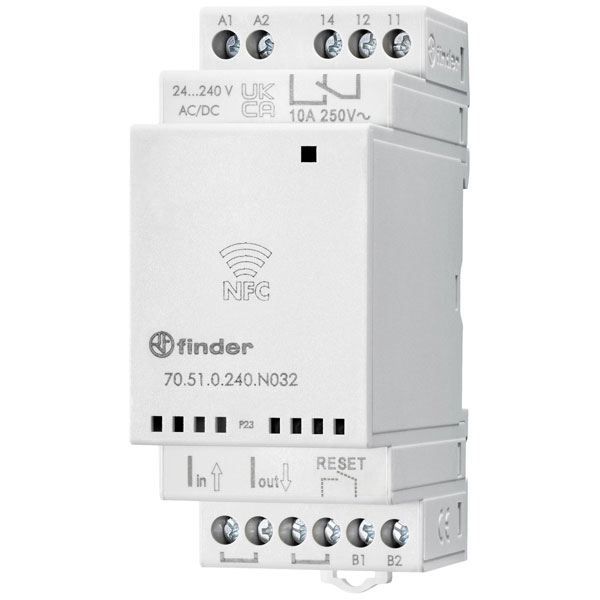

Finder 70.51.0.240.N032 Current monitor Relay reliable precise

Finder's current monitor relay 70.51.0.240.N032 is designed to measure and monitor electrical currents effectively. Features include adjustable threshold settings and LED indicators for status display. It is typically used in industrial environments to protect electrical systems from overloads.

Type	Current monitor relay
Contains function DC-voltage overcurrent	false
Contains function DC-voltage under current	false
Current measuring range	0.05 - 16A
Depth	56.5mm
External current transformer	true
Function DC-current hysteresis	true
Height	88.8mm
Max. permitted delay-on energization time	40s
Max. permitted off-delay time	30s
Min. adjustable delay-on energization time	0.1s
Min. adjustable off-delay time	0.1s
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Rated control supply voltage AC 50 Hz	240 - 240
Rated control supply voltage AC 60 Hz	240 - 240
Rated control supply voltage DC	240 - 240
Single-phase hysteresis possible	true
Single-phase overcurrent possible	true
Single-phase under current possible	true
Three-phase hysteresis possible	true
Three-phase overcurrent possible	true
Three-phase under current possible	true
Type of electric connection	Screw connection
Voltage type for actuating	AC/DC
Width	35mm
With detachable clamps	false
