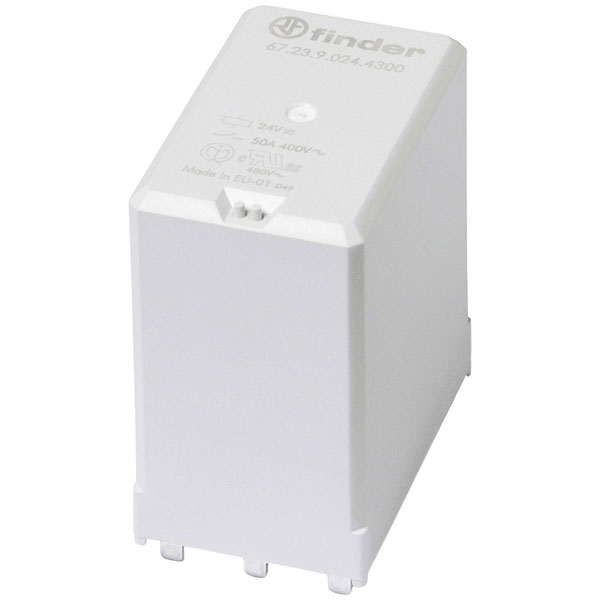

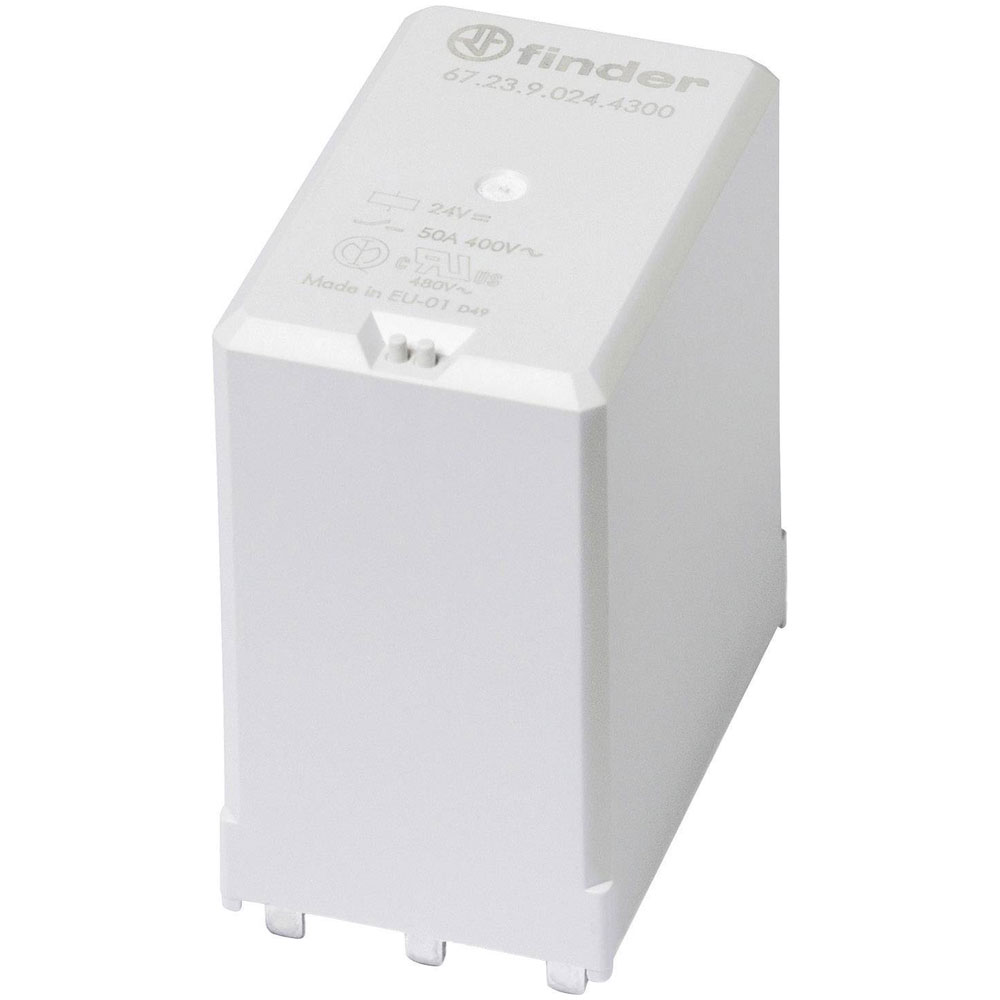

Finder 67.23.9.024.4300 PCB Relay 24V DC 50A for inverters 1pc

The Finder 67.23.9.024.4300 PCB relay operates at 24 V DC and has a switching capacity of 50 A. This mini PCB mount relay is ideal for printed circuit board applications requiring durable and reliable performance. It is typically used in industrial and automation systems where robust and efficient control processes are needed.

Coil Voltage	24V DC
Contact Configuration	3NO
Switching Current	50A
Coil Resistance	340O
Complete with socket	false
Connection	Solder pins
Contact Material	AgSnO2
Control Mode	monostable, 1 coil
Degree of protection (IP)	N/A
Depth	51.5mm
Dimensions	(L x W x H) 51.5 x 33 x 57.5 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	57.5mm
Length	51.5mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Max. pick-up Voltage	26.4V DC
Max. switching capacity	20000VA
Min. pick-up Voltage	21.6V DC
Mounting Type	PCB
Nominal Current	50A
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	3
Rated control supply voltage DC	24 - 24V
Switching Voltage Max	690V AC
Type	PCB relay
Type of electric connection	PCB connection
Type of switch contact	Double contact
Voltage type for actuating	DC
Width	33mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	false
