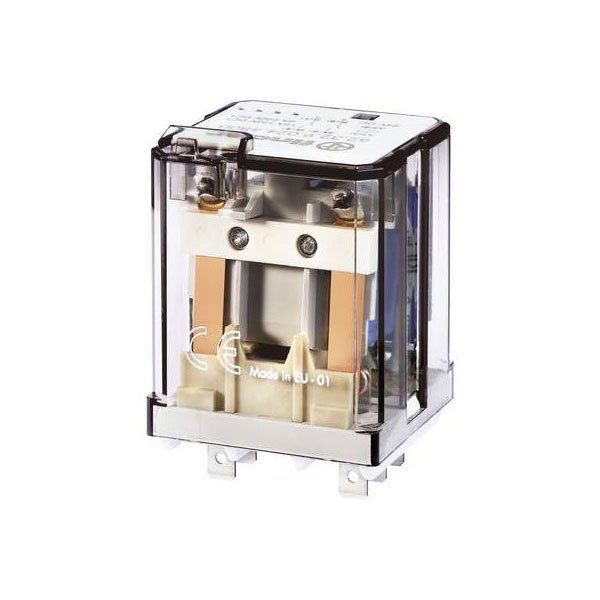

Finder 62.32.9.012.4800 Plug-in Relay 12 V DC 16 A 2 NO contacts Faston

The Finder plug-in relay 62.32.9.012.4800 is a robust component designed for a 12 V DC operation with a capacity of 16 A and features two makers for enhanced connection flexibility. Typically used in printed circuit board applications, it is ideal for industrial automation and control systems. With its reliable performance and compact design, it is well-suited for various electrical and electronic applications.

Coil Voltage	12V DC
Contact Configuration	2NO
Switching Current	16A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	35.8mm
Dimensions	(W x H x D) 38.2 x 49.1 x 35.8 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	49.1mm
IP Rating	IP20
Length	35.8 mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Mounting Type	Faston
Nominal Current	16A
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	1
Rated control supply voltage DC	12 - 12V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Double contact
Voltage type for actuating	DC
Width	38.2mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
