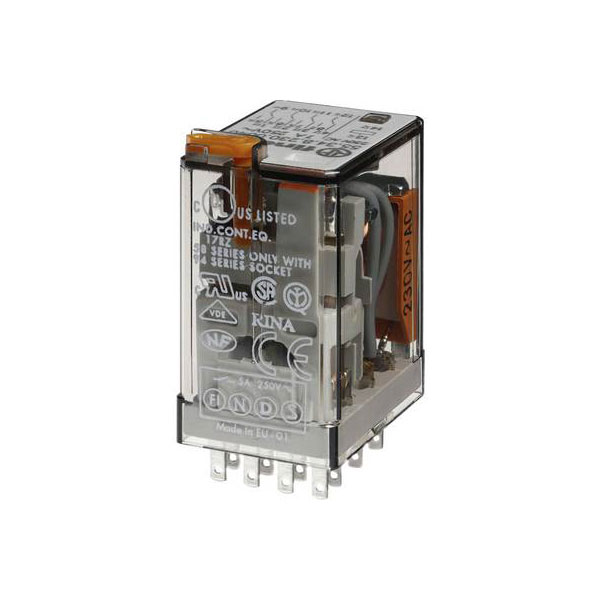

Finder 55.34.8.012.0040 Plug-in Relay 12 V AC 7 A 4 change-overs

The Finder plug-in relay, model 55.34.8.012.0040, operates at 12 V AC and can handle a current of up to 7 A with its four change-over contacts. This compact relay is designed for PCB mounting, making it suitable for various electronic and automation applications. Typical uses include control systems, electrical panels, and industrial equipment.

Coil Voltage	12V AC
Contact Configuration	4CO (4PDT)
Switching Current	7A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	27.7mm
Dimensions	(W x H x D) 20.7 x 37.2 x 27.7 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	37.2mm
IP Rating	IP20
Length	27.7mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Mounting Type	PCB
Nominal Current	7A
Number of contacts as change-over contact	4
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage AC 50 Hz	12 - 12V
Rated control supply voltage AC 60 Hz	12 - 12V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Single contact
Voltage type for actuating	AC
Width	20.7mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
