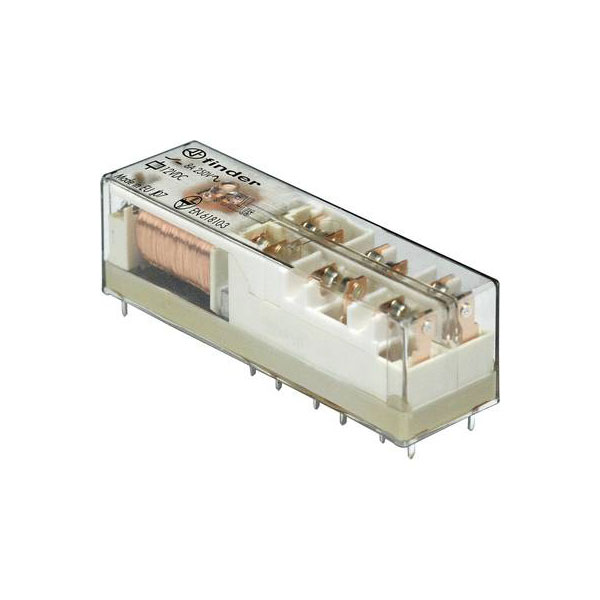

The Finder 50.16.9.012.5420 is a PCB relay that operates at 12 V DC and supports up to 8 A with two breakers. It features a compact design suitable for printed circuit boards, making it ideal for space-constrained applications. Typically used in industrial control systems and automation, it provides reliable switching for various electrical devices.
| Coil Voltage |
12V DC |
| Contact Configuration |
4NO+2NC |
| Switching Current |
8A |
| Connection |
Print |
| Depth |
55mm |
| Dimensions |
(W x H x D) 16.5 x 16.5 x 55 mm |
| Evaluation inputs |
Other |
| Height |
16.5mm |
| IP Rating |
IP67 |
| Model |
Other |
| Mounting Type |
PCB |
| Number of outputs, safety related, delayed, semiconductors |
N/A |
| Number of outputs, safety related, delayed, with contact |
N/A |
| Number of outputs, safety related, undelayed, semiconductors |
N/A |
| Number of outputs, safety related, undelayed, with contact |
6 |
| Number of outputs, signalling function, delayed, semiconductors |
N/A |
| Number of outputs, signalling function, delayed, with contact |
N/A |
| Number of outputs, signalling function, undelayed, semiconductors |
N/A |
| Number of outputs, signalling function, undelayed, with contact |
N/A |
| Performance level according to EN ISO 13849-1 |
N/A |
| Rated control supply voltage DC |
12 - 12 |
| SIL according to IEC 61508 |
N/A |
| Stop category according to IEC 60204 |
N/A |
| Suitable for monitoring of emergency-stop circuits |
true |
| Suitable for monitoring of magnetic switches |
N/A |
| Suitable for monitoring of optoelectronic protection equipment |
N/A |
| Suitable for monitoring of position switches |
N/A |
| Suitable for monitoring of proximity switches |
N/A |
| Suitable for monitoring of tactile sensors |
N/A |
| Suitable for monitoring of valves |
N/A |
| Suitable for rail mounting |
false |
| Type |
PCB relay |
| Type of electric connection |
PCB connection |
| Type of safety according to IEC 61496-1 |
N/A |
| Voltage type for actuating |
DC |
| Width |
16.5mm |
| With approval according to UL |
true |
| With approval for BG BIA |
N/A |
| With approval for TÜV |
true |
| With detachable clamps |
false |
| With feedback circuit |
N/A |
| With muting function |
N/A |
| With start input |
N/A |
