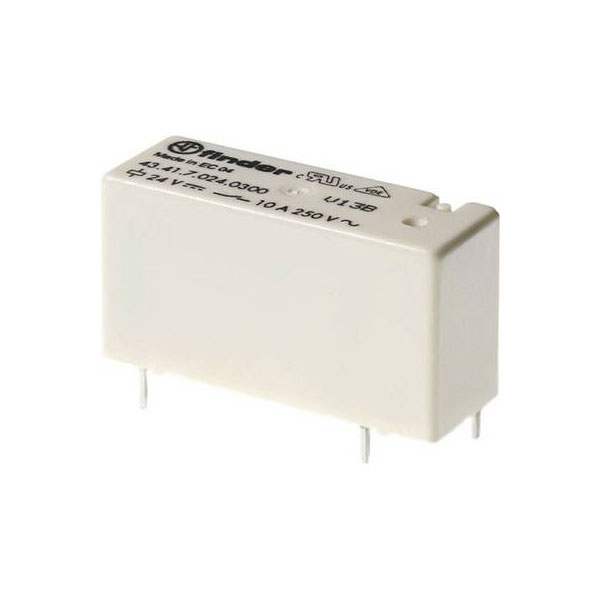

Finder 43.41.7.005.5000 PCB Relay 5V 10A CO gold plated RT II 3.2mm

The Finder 43.41.7.005.5000 PCB relay is a compact printed circuit board relay designed to operate with a coil voltage of 5 V DC, capable of handling up to 10 A with a single change-over contact. Its small form factor and reliable performance make it suitable for use in consumer electronics, automotive systems, and industrial control applications. This mini PCB relay is ideal for applications requiring precise switching in compact spaces.

Coil Voltage	5V DC
Contact Configuration	1CO (SPDT)
Switching Current	10A
Complete with socket	false
Connection	Print
Degree of protection (IP)	N/A
Depth	30.2mm
Dimensions	(W x H x D) 10.2 x 15.4 x 30.2 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	15.4mm
IP Rating	IP40
Length	30.2mm
Material contact	Other copper alloys
Material of contact insert	Thermoplastic
Material of contact surface	Gold
Mounting Type	PCB
Nominal Current	10A
Number of contacts as change-over contact	1
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage DC	5 - 5V
Type	PCB relay
Type of electric connection	PCB connection
Type of switch contact	Single contact
Voltage type for actuating	DC
Width	10.2mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	false
