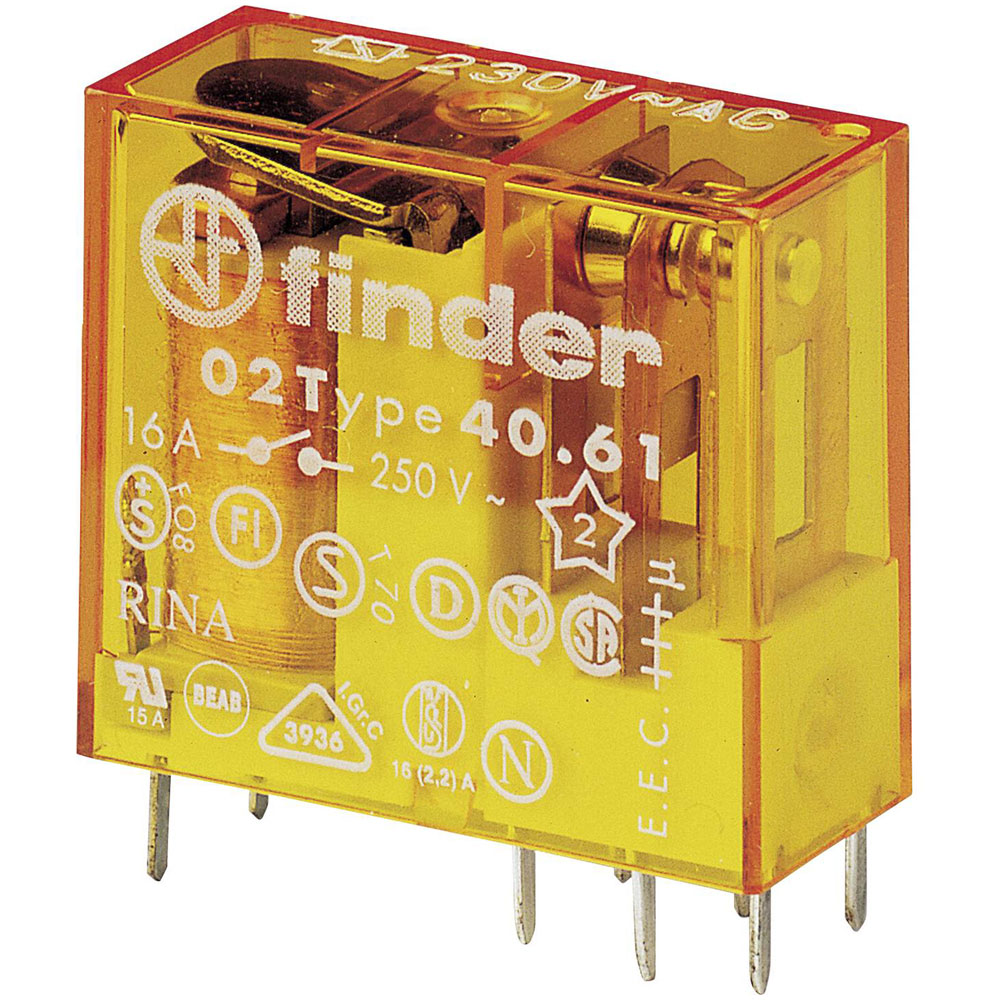

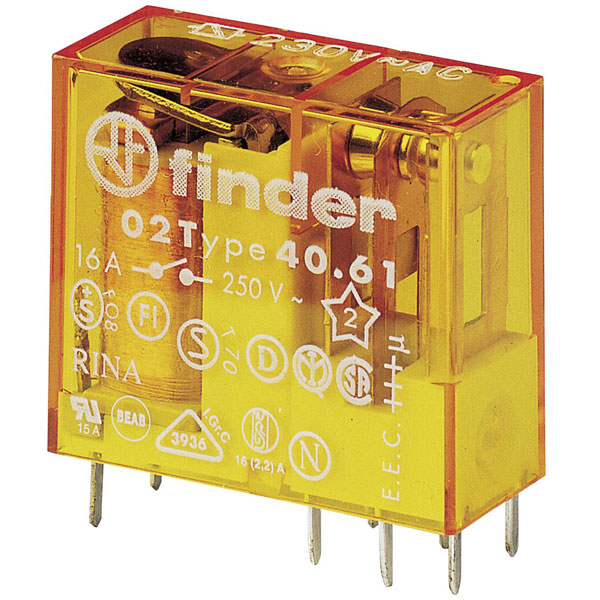

Finder's PCB relay, model 40.61.8.230.4000, operates at 230 volts AC and handles up to 16 amperes. It features a single change-over contact, making it suitable for various switching applications. This relay is ideal for use on printed circuit boards in industrial and consumer electronics.
| Coil Voltage |
230V AC |
| Contact Configuration |
1CO (SPDT) |
| Switching Current |
16A |
| Coil Resistance |
28000Ω |
| Complete with socket |
false |
| Connection |
Solder pins |
| Contact Material |
AgSnO2 |
| Control Mode |
monostable, 1 coil |
| Creepage distance (coil/clips) |
8mm |
| Degree of protection (IP) |
N/A |
| Depth |
29mm |
| Dimensions |
(L x W x H) 29 x 12.4 x 25 mm |
| Drive, polarization |
Polarity free |
| Drive, switching attitude |
Mono stable |
| Height |
25mm |
| Length |
29.0mm |
| Material contact |
Other copper alloys |
| Material of contact insert |
Thermoplastic |
| Material of contact surface |
Untreated |
| Max. pick-up Voltage |
253V AC |
| Max. switching capacity |
4000VA |
| Maximum Temperature |
+85°C |
| Min. pick-up Voltage |
184V AC |
| Min. temperature |
-40°C |
| Minimum Operating Temperature |
-40°C |
| Mounting Type |
PCB |
| Nominal Current |
16A |
| Number of contacts as change-over contact |
1 |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
0 |
| Rated control supply voltage AC 50 Hz |
230 - 230V |
| Rated control supply voltage AC 60 Hz |
230 - 230V |
| Switching Voltage Max |
400V AC |
| Type |
PCB relay |
| Type of electric connection |
Plug-in connection |
| Type of switch contact |
Single contact |
| Voltage type for actuating |
AC |
| Width |
12.4mm |
| With detachable clamps |
N/A |
| With forced-guided contacts |
false |
| With LED indication |
false |
