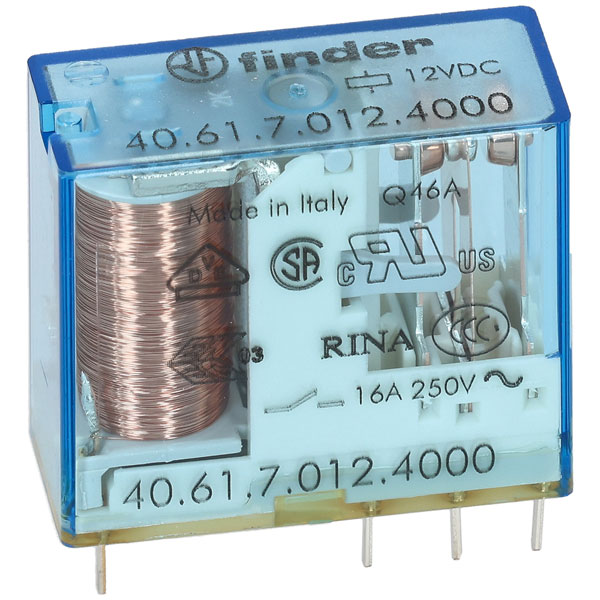

Finder 40.61.7.012.4000 12V 16A SPDT Power PCB Relay - Pin length 3.5 mm for PCB mount; DC coils (650 mW or 500 mW) and AC coils with cadmium-free contact material available and 8 mm Creepage and Clearance, 6 kV (1.2/50µs) between coil and contact. Meets EN 60335-1 glow wire requirements has 95 series sockets for PCB or 35 mm rail mounting (EN 60715) with Screw, Screwless or Push-in terminals. Coil Indication and EMC suppression modules, 99 series and Timer module 86.30 options.
- Contact configuration: 1 CO (SPDT)
- Rated current/Maximum peak current: 16/30**
- Rated voltage: Maximum switching voltage V AC: 250/400
- Rated load AC1: 4000
- Rated load AC15 (230 V AC): 1000
- Single phase motor rating (230 V AC):0.55
- Breaking capacity DC1: 24/110/220 V: 16/0.6/0.25
- Minimum switching load mW (V/mA):500 (10/5)
| Coil Voltage |
12V DC |
| Contact Configuration |
1CO (SPDT) |
| Switching Current |
16A |
| Coil Power |
1.2/0.65/0.5 |
| Coil Type |
AC/DC |
| Complete with socket |
false |
| Degree of protection (IP) |
N/A |
| Depth |
29mm |
| Drive, polarization |
Polarity free |
| Drive, switching attitude |
Mono stable |
| Height |
5mm |
| Length |
29mm |
| Material contact |
Other copper alloys |
| Material of contact insert |
Thermoplastic |
| Material of contact surface |
Untreated |
| Mounting Type |
PCB |
| Nominal Current |
16A |
| Number of contacts as change-over contact |
1 |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
0 |
| Operating Temperature |
-40 to +85°C |
| Rated control supply voltage DC |
12 - 12V |
| Type |
PCB Relay |
| Type of electric connection |
Plug-in connection |
| Type of switch contact |
Single contact |
| Voltage type for actuating |
DC |
| Width |
12.4mm |
| With detachable clamps |
N/A |
| With forced-guided contacts |
false |
| With LED indication |
false |
