Finder 39.41.0.024.5060 Relay Module 6A SPDT 24VAC/DC

Finder
Order Code:

50-4782

Brand: Finder MPN: 39.41.0.024.5060
Qty Unit Price (Ex VAT)
1+ £14.57
10+ £14.45
25+ £10.52
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 15/06/2026

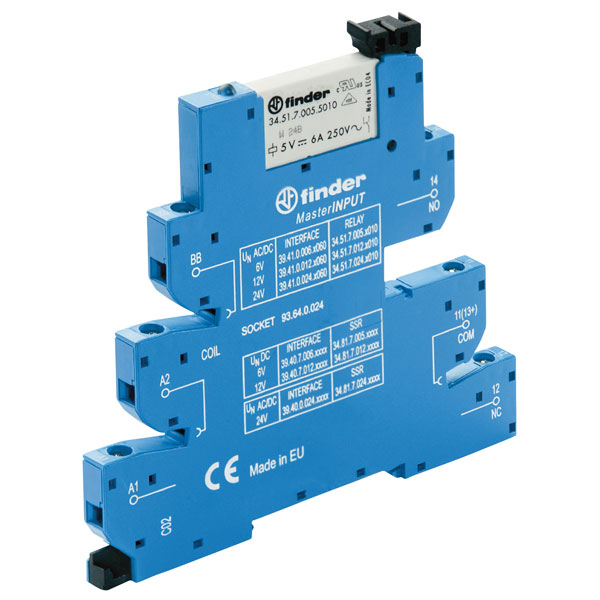

This 6A electromechanical relay has a 24V AC/DC coil voltage and is designed for the quick and easy distribution of supply voltages to proximity switches and similar input devices.


  • MasterINPUT coupling relays with EMR relay output
  • SPDT-CO
  • Switching voltage 250V AC
  • Space saving 6.2mm wide
  • Connections for 16-way jumper link
  • Integral coil indication and protection circuit
  • Secure retention and easy ejection by plastic clip
  • Dual screw head terminals
  • 35mm DIN rail mounting
Type Relay module
Mounting Type Rail
Length 94.3mm
Width 6.2mm
Height 90.7mm
Coil Current 11mA
Coil Voltage (AC) 24V
Coil Voltage (DC) 24V
Complete with socket true
Contact Configuration SPDT
Degree of protection (IP) IP20
Depth 87.2mm
Drive, polarization Polarity free
Drive, switching attitude Mono stable
Material contact Other copper alloys
Material of contact insert Thermoplastic
Material of contact surface Gold
Nominal Current 6A
Number of contacts as change-over contact 1
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 0
Operating Temperature -40 to +70°C
Rated control supply voltage AC 50 Hz 24 - 24V
Rated control supply voltage AC 60 Hz 24 - 24V
Rated control supply voltage DC 24 - 24V
Rated current 6A
Rated Voltage (AC) 250V
Switching Power 1500VA
Type of electric connection Screw connection
Type of switch contact Single contact
Voltage type for actuating AC/DC
With detachable clamps false
With forced-guided contacts false
With LED indication true
