Finder 38.61.7.048.0050 Relay 48 V DC 6 A DIN Rail tension spring

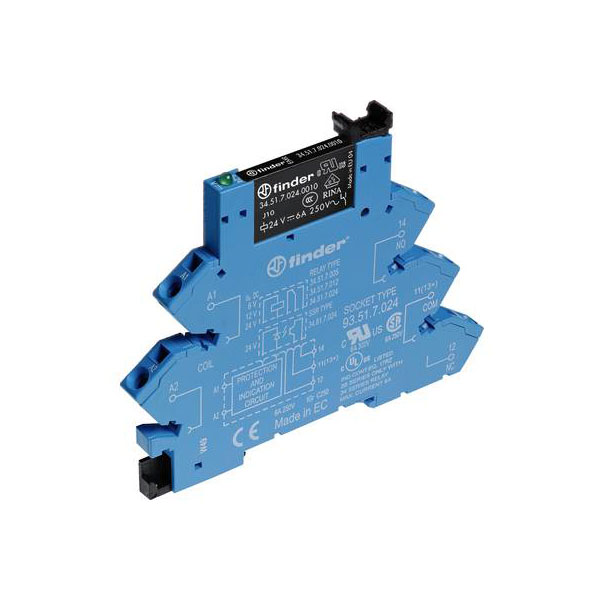

Image Representative of Range

Finder 38.61.7.048.0050 Relay 48 V DC 6 A DIN Rail tension spring

Finder
Order Code:

03-3633

Brand: Finder MPN: 38.61.7.048.0050 EAN-13: 2050011623628
Qty Unit Price (Ex VAT)
1+ £16.20
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back order

Finder manufactures the 38.61.7.048.0050 crossbar switch, which operates at 48 V DC and supports a current of up to 6 A with one change-over contact. This interface relay is used in various applications to facilitate the switching of electrical signals. It is typically employed in control panels and automation systems due to its reliable performance and compact design.
Type Crossbar switch
Complete with socket true
Connection Spring-loaded connector
Contact Type 1 change-over
Degree of protection (IP) IP20
Depth 76mm
Dim (W x H x D) 6.2 x 93.6 x 76 mm
Drive, polarization Polarity free
Drive, switching attitude Mono stable
Height 93.6mm
IP Rating IP20
Material contact Other copper alloys
Material of contact insert Thermoplastic
Material of contact surface Untreated
Nominal Current 6A
Nominal Voltage 48V DC
Number of contacts as change-over contact 1
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 0
Rated control supply voltage DC 48 - 48V
Switching current (max.) 6A
Type of electric connection Spring clamp connection
Type of switch contact Single contact
Voltage type for actuating DC
Width 6.2mm
With detachable clamps false
With forced-guided contacts false
With LED indication true
