Finder 38.51.7.024.0050 24V Relay 6A Interface Module 38.51

Finder
MPN
38.51.7.024.0050
Brand
Finder
EAN-13
8012823122991
Order Code
60-1752
Country of Origin
Italy
Qty Unit Price (Ex VAT)
1+ £19.60
25+ £12.80
50+ £12.53
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
340 in stock, despatched same dayAdditional quantity lead time 7 days

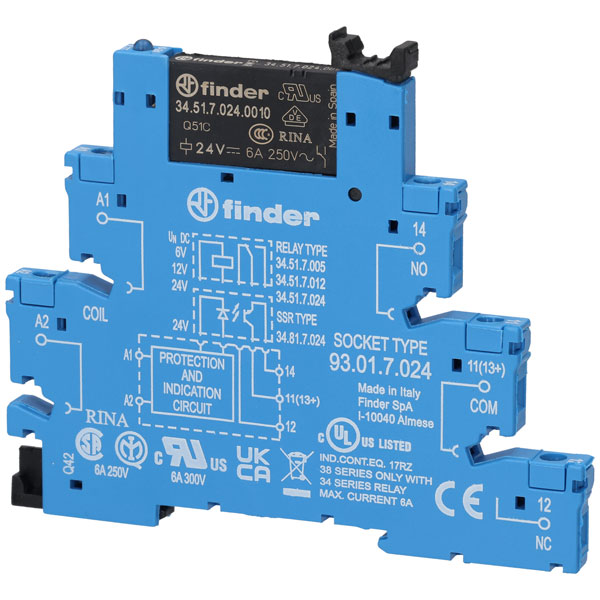

The Finder 24V Relay 6A Interface Module 38.51 is a high quality 35mm DIN rail mounting relay interface module from Finder.


  • Coil indication
  • Protection circuit
  • Fitted with retaining clip
  • ID tab and jumper busbar available
Type Relay Interface Module
Mounting Type Rail
Height 87mm
Width 6mm
Length 75mm
Coil Voltage 24V
Complete with socket true
Contact Configuration SPDT
Degree of protection (IP) IP20
Depth 72.1mm
Drive, polarization Polarity free
Drive, switching attitude Mono stable
Material contact Other copper alloys
Material of contact insert Thermoplastic
Material of contact surface Untreated
Nominal Current 6A
Number of contacts as change-over contact 1
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 0
Operating Temperature -40 to +55°C
Rated control supply voltage DC 24 - 24V
Switching Current 6A
Switching Power 1500VA
Switching Voltage 250V
Type of electric connection Screw connection
Type of switch contact Single contact
Voltage type for actuating DC
With detachable clamps false
With forced-guided contacts false
With LED indication true
