Finder 38.21.0.012.0060 TDR time Relay 12V AC/DC 0.1-21600s 1C/O DIN Rail

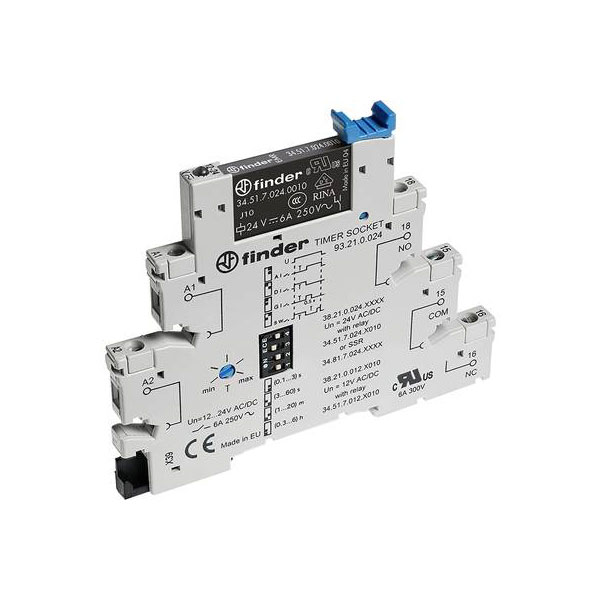

Image Representative of Range

Finder 38.21.0.012.0060 TDR time Relay 12V AC/DC 0.1-21600s 1C/O DIN Rail

Finder
Order Code:

03-3592

Brand: Finder MPN: 38.21.0.012.0060 EAN-13: 2050011577273
Qty Was Unit Price (Ex VAT)
1+ £35.57 £35.34
5+ £35.30 £35.07
10+ £35.03 £34.80
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
10 in stock, despatched in 4 working days

The Finder 38.21.0.012.0060 is a versatile time delay relay with a time range from 0.1 to 21600 seconds and features a 12 V DC/AC power supply. It includes a single change-over contact and is designed for rail mounting, making it ideal for use in timing applications and staircase lighting control. This multifunction relay is suitable for both residential and industrial automation scenarios.
Type TDR
Complete with socket true
Connection Screws
Contact Configuration 1 change-over
Degree of protection (IP) IP20
Depth 75.6mm
Dim (W x H x D) 6.2 x 87.9 x 75.6 mm
Drive, polarization Polarity free
Drive, switching attitude Mono stable
Height 87.9mm
Material contact Other copper alloys
Material of contact insert Thermoplastic
Material of contact surface Untreated
Nominal Current 6A
Number of contacts as change-over contact 1
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 0
Operating Voltage 12V DC/AC
Rated control supply voltage AC 50 Hz 12 - 12V
Rated control supply voltage AC 60 Hz 12 - 12V
Rated control supply voltage DC 12 - 12V
Switching current (max.) 6A
Time range (max.) 21600s
Time range (min.) 0.1s
Type of electric connection Screw connection
Type of switch contact Single contact
Voltage type for actuating AC/DC
Width 6.2mm
With detachable clamps false
With forced-guided contacts false
With LED indication true
