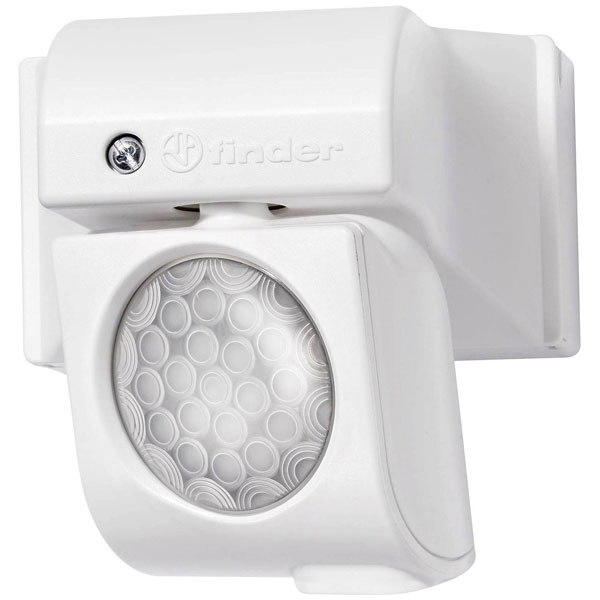

Finder 18.A1.8.230.0000 PIR detector wall mount 110-230V 10m range

The Finder PIR movement detector, model 18.A1.8.230.0000, operates with an AC voltage of 110 - 230 V. It has a maximum range of 10 metres in open fields and functions effectively in temperatures from -30 to +50 °C. This device is ideal for outdoor security lighting and energy-efficient building automation applications.

Type	IR motion detector
Supply Voltage	110-230V AC
Mounting Type	Surface-mount
Angular Aperture	110°
Animal zone	true
Anti-bacterial treatment	false
Bridging switch	N/A
Built-in depth	N/A
Built-in diameter	N/A
Built-in length	N/A
Built-in Width	N/A
Colour	White
Compatible with Amazon Alexa	false
Compatible with Apple HomeKit	false
Compatible with Google Assistant	false
Connection Type	Other
Constant light control	false
Contact Material	AgSnO2
Contact Type	1 maker
Control current	10mA
Creep-under protection	N/A
Degree of protection (IP)	IP55
Depth	79.5mm
Detection Angle	110°
Diameter	N/A
Diameter reach on floor	N/A
Dim function with dimmer basic element	false
Factory colour	White
Forced switch off	false
Forced switch on	false
Frequency	50 - 60Hz
Halogen free	true
Height	91.45mm
HVAC-control	false
IFTTT support available	false
Impact strength	N/A
Light sensitivity (max.)	1000lx
Light sensitivity (min.)	5lx
Material	Plastic
Material quality	Thermoplastic
Max. duty cycle	20min
Max. operating voltage	230V AC
Max. presence range	N/A
Max. Range	10m
Max. reach frontally	N/A
Max. reach sideways	N/A
Max. starting current	20A
Max. switching capacity	2300VA
Max. switching power	1000W
Max. switching power LED	300W
Maximum Temperature	+50°C
Min. depth of built-in installation box	N/A
Min. operating voltage	110V AC
Min. starting current	N/A
Min. switch-on time	10s
Min. temperature	-30°C
Misc Attribute 1	PIR movement detector for external installation - wall mounting
Misc Attribute 3	18.A1.8.230.000
Model	Movement sensor
Mounting method	Surface mounted
Networkable	false
Nominal Voltage	230
Number of switching zones	N/A
Optimum mounting height	N/A
RAL-number (similar)	9010
Remote operation	false
Response value luminosity	5 - 1000lx
Response value luminosity adjustable	true
Response value sensitivity adjustable	true
Scan angle	N/A
Sensitivity	5 - 1000lx
Sensor Type	Passive infrared
Staircase light controller	false
Substation input	false
Suitable for ceiling mounting	false
Suitable for C-load	true
Suitable for wall mounting	true
Suitable for wireless transmission	false
Surface finishing	Matt
Surface protection	N/A
Switching Capacity	(AC1) Max. 2300 VA/ (AC15) Max. 450VA
Switching Current	10A
Switching current (max.)	10A
Switching Voltage	230 V/AC
Switching voltage (max.)	230V AC
Switching-on delay	N/A
Switch-off delay	N/A
Teach-function for response value luminosity	N/A
Temperature	-30 - 50°C
Temperature Range	-30 - +50°C
Time range	10 s - 20min
Time range (max.)	20min
Time range (min.)	10s
Transparent	true
Viewing width	10m
Voltage type	AC
Width	86mm
With alarm function	false
With DALI interface	false
With remote control	false
With signal unit	true
