Finder 12.61.8.230.0000 DIN Rail timer 230V AC/DC NFC programming

Finder
Order Code:

03-3449

Brand: Finder MPN: 12.61.8.230.0000 EAN-13: 8012823401799
Qty Unit Price (Ex VAT)
1+ £61.44
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
138 in stock, despatched in 4 working days

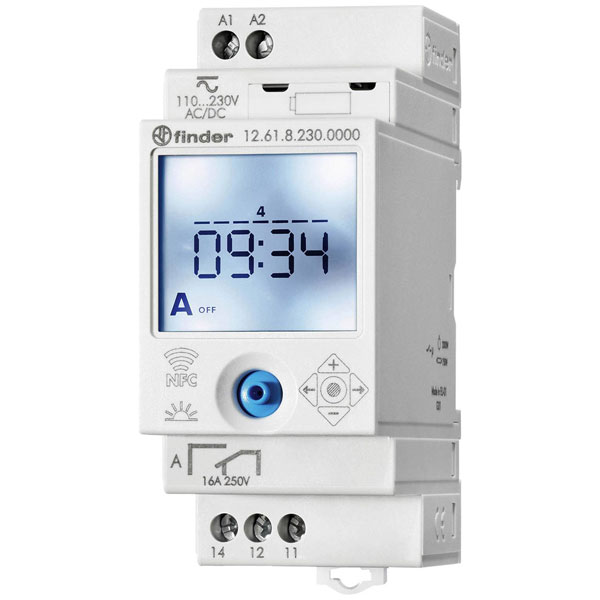

The Finder 12.61.8.230.0000 is a versatile DIN rail mount timer suitable for both 230 V DC and 230 V AC applications. This multifunction relay is designed with week settings, making it ideal for scheduling tasks over several days. Typical applications include controlling lighting, HVAC systems, and other automation tasks in residential or commercial settings.
Type DIN rail mount timer
Supply Voltage 110 - 230V
Number of Channels 1
24 h program true
60 min program true
Accuracy per day 1s
Annual program false
Astro program false
Automatic switching summer/winter time true
Autonomy in hours N/A
Autonomy in years 6
Contact Configuration 1 change-over
Contact Type Change-over contact (NO/NC)
Cycle program true
Degree of protection (IP) IP20
Depth 56.5mm
External programming true
External push button input N/A
Frequency supply voltage 50 - 60Hz
GPS (global positioning system) false
Height 84mm
Holiday program false
Hour meter N/A
Impulse program true
IP Rating IP20
Mains synchronous false
Max. switching capacity 750VA
Max. switching power LED N/A
Max. temperature +50°C
Min. temperature -20°C
Misc Attribute 2 Week settings
Mounting method DIN rail
Nominal switching current at 250 V AC 16A
Number of Contacts 1
Number of memory locations 50
Number of switching intervals 50
Operating Voltage 90, 90 - 264, 264 V DC, V AC
Potential free switch contact true
Quartz controlled true
Radio-controlled true
Radio-controlled (DCF77) false
Random program N/A
Shortest switching time channel 1 1min
Shortest switching time channel 2 N/A
Suitable for manual operation true
Switching current (max.) 16A
Switching distance (min) 1min
Switching preselection N/A
Switching voltage (max.) 250V AC
Text guidance in display true
Voltage type (supply voltage) AC/DC
Weekly program true
Width 35mm
Width in number of modular spacings 2
With memory card N/A
