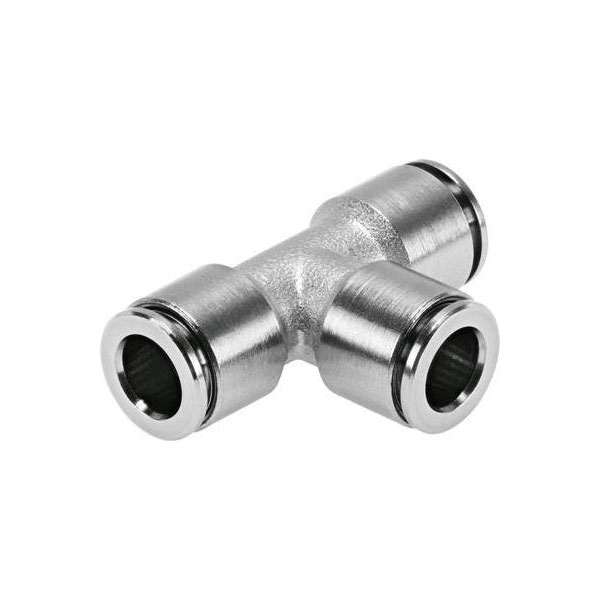

FESTO NPQH-T-Q8-E-P10 Connector piece 8 mm external thread

The Festo NPQH-T-Q8-E-P10 is a pneumatic connector featuring an 8 mm external thread. It is designed for efficient air flow connections in pneumatic systems. This connector is typically used in automation and industrial applications for reliable and secure tubing connections.

Type	Connector piece
External thread	8mm
Material	Brass (Ni-plated)
Max. ambient temperature	150°C
Max. operating pressure	20bar
Min. ambient temperature	0°C
Min. operating pressure	-0.95bar
Misc Attribute	T-plug-in connection NPQH-T-Q8-E-P10 Size = Standard, nominal width = 7 mm, mounting position=any, container size = 10, constructive design = Push-pull principle
Operating medium	Compressed air according to ISO 8573-1:2010 [7:-:-]
