FESTO 9857 Magnetic valve MFH-3-1/2 G1/2 14mm 1pc

Name: FESTO 9857 Magnetic valve MFH-3-1/2 G1/2 14mm 1pc
Brand: FESTO
Price: 297.66 GBP
Availability: InStock

Standard range

Order Code:

03-3263

Brand: FESTO MPN: 9857

RoHS Compliant
Country of Origin: Germany
Free UK shipping available
View Full Product Range (12)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£297.66

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

2 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

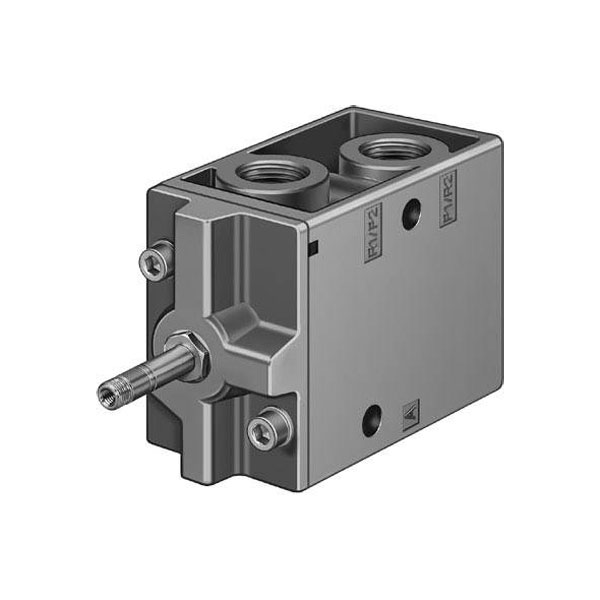

The FESTO Magnetic valve 9857 MFH-3-1/2 is designed with a nominal width of 14 mm and features G 1/2 connections. It is suitable for controlling all fluid types, including water flow, in various industrial applications. This durable valve ensures reliable and efficient operation in automated systems.

Type	Magnetic valve
Connection	G 1/2
Enclosure material	Aluminium (die-cast)
IP rating	IP65
Manufacturer part #	9857
Max. ambient temperature	+40°C
Max. flow	3700l/min
Max. media temperature	+60°C
Max. operating pressure	8bar
Media temperature (min.)	-10°C
Media temperature (range)	-10 up to +60 °C
Min. ambient temperature	-5°C
Nominal width	14mm
Operating medium	According to ISO 8573-1:2010 compressed air [7:4:4]
Operating pressure (min.)	1.5bar
Operation	Electrically
Sealant	NBR
Weight	1100g
