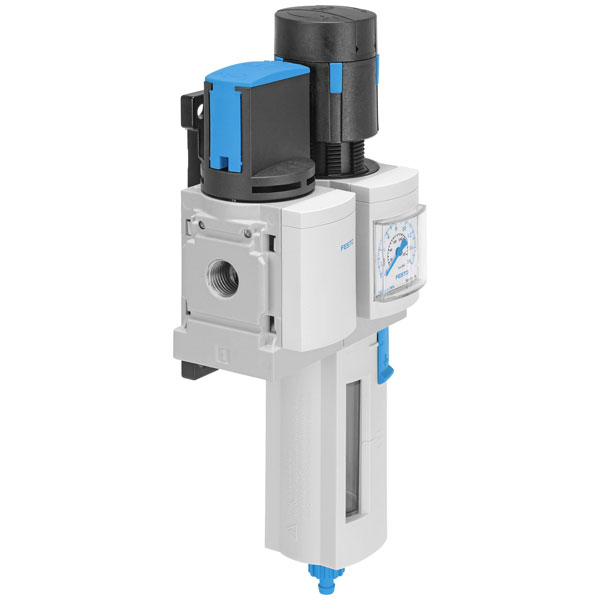

FESTO 8025354 MSB4-1/4 Maintenance module efficient 14 bar air flow

Festo's Maintenance Module MSB4-1/4:C3:J1-WP is designed for 1/4" compressed air or inert gas, offering a maximum operating pressure of 14 bar. This module is ideal for maintaining and regulating the performance of pneumatic systems. It is typically used in industrial applications requiring reliable air and gas management.

Type	Maintenance module
Connection	G 1/ 4
Control range	0.5 bar-12bar
Device temperature (max.)	+60°C
Filter pore size	40µm
Internal thread	1/4"
Material (details)	Die-cast aluminum, PC
Max. flow	1700l/min
Max. operating pressure	14bar
Min. device temperature	-10°C
Min. operating pressure	0.8bar
Misc Attribute	MSB4-1/4:C3:J1-WP
Operating medium	According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases
Size	4
Weight	1300g
