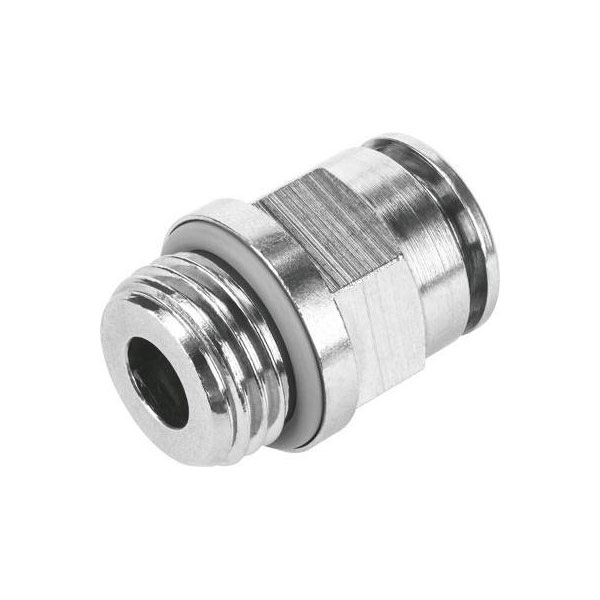

FESTO 578343 Screw Fastener G1/4" plug-in gland 20 bar 1pc

The FESTO screw fastener NPQH-D-G14-Q10-P10 is designed for secure connections with an external thread of G1/4”. It operates efficiently between -0.95 to 20 bar, making it ideal for pneumatic applications. Common uses include automation systems and industrial machinery where reliable fastening is crucial.

Type	Screw fastener
Connection	G1/4, for hose 10 mm outer diameter
External thread	G1/4"
Material (details)	Nickel-plated brass, FPM
Max. operating pressure	20bar
Misc Attribute	Corrosion resistance class KBK: 3-strong corrosion stress
Operating medium	Compressed air according to ISO 8573-1:2010 [7:-:-]
Operating pressure (min.)	-0.95bar
Pressure Range	-0.95 up to 20 bar
