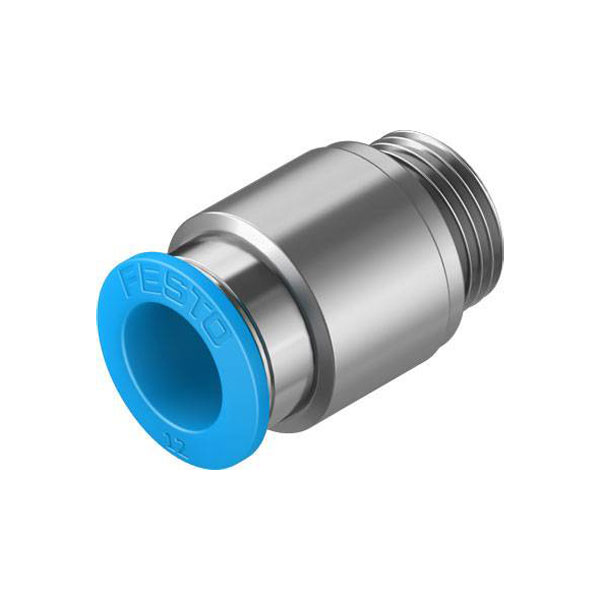

FESTO 186114 Screw Fastener G3/8" external thread 1pc

The Festo QS-G3/8-12-I 186114 screw fastener features an external G3/8" thread, ideal for secure pneumatic connections. Manufactured by Festo, this pneumatic connector ensures reliable and durable fastening in various industrial automation systems. It is typically used in applications requiring precise and robust connections, such as in factory machinery and pneumatic control systems.

Type	Screw fastener
External thread	G3/8"
Material	Brass (Ni-plated)
Max. ambient temperature	80°C
Max. operating pressure	6bar
Min. ambient temperature	-10°C
Min. operating pressure	-0.95bar
Misc Attribute	Plug-in gland QS-G3/8-12-I External thread with hexagon socket. Size = Standard, nominal width = 8.4 mm, seal type on the screw-in stud = sealing ring, mounting position=any, container size = 10
Operating medium	Compressed air according to ISO 8573-1:2010 [7:-:-]
