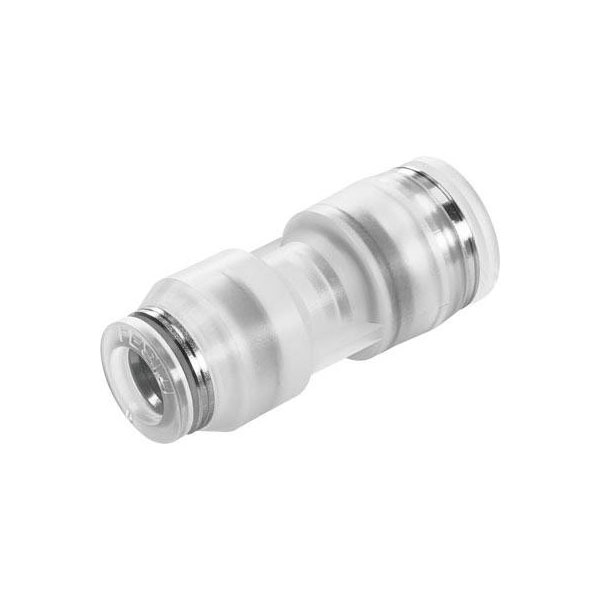

FESTO 133098 Straight piece R1/4 thread 10mm Pipe Diameter

Festo's pneumatic connector, the NPQP-D-Q10-Q8-FD-P10, features an external thread of R1/4 and a pipe diameter of 10 mm. This straight piece is designed for efficient and secure piping connections in pneumatic systems. Commonly used in automation and industrial applications, it ensures reliable air flow and easy assembly.

Type	Straight piece
External thread	R1/4
Material	PP
Max. ambient temperature	60°C
Max. operating pressure	10bar
Min. ambient temperature	-20°C
Min. operating pressure	-0.95bar
Misc Attribute	KBK: 4 - very strong corrosion stress
Operating medium	Compressed air according to ISO 8573-1:2010 [7:-:-]
Pipe Ø	10mm
