FCI 86093968114755V1LF Edge Connector 96 Pins 3 Rows 1pc

FCI
Order Code:

03-0924

Brand: FCI MPN: 86093968114755V1LF EAN-13: 2050003690911
Qty Unit Price (Ex VAT)
2+ £3.32
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
19 in stock, despatched in 4 working days

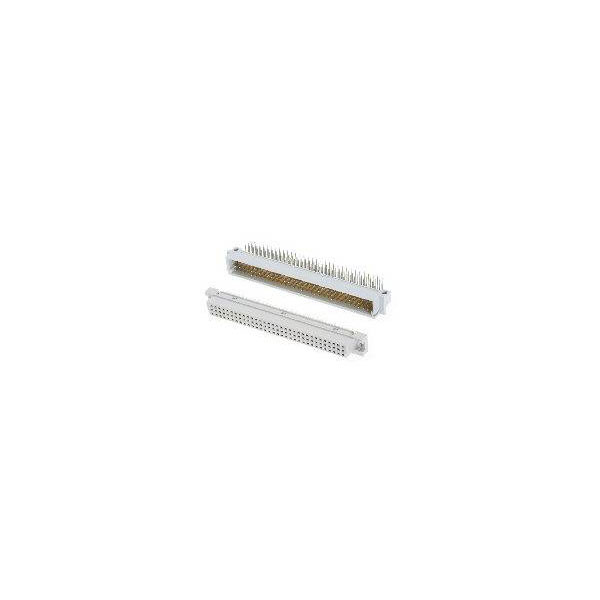

The edge connector, manufactured by FCI, features 96 pins arranged in 3 rows. This socket, part number 86093968114755V1LF, is commonly used for making strong connections in PCB and system applications. It is ideal for scenarios requiring reliable power or signal connections.
Type Edge connector (sockets)
Number of Positions 3
Contact Plating Copper alloy
Case Material Thermoplastic UL94V-O
Certification marks DIN 41612
Colour Grey
Configuration (a+b+c)
Connection Print
Connector orientation Perpendicular (to the PCB)
Contact surface Gold plated
CS 2.54mm
Dimensions (L x W x H) 10.6 x 95 x 15.6 mm
DIN Standard C
Height 15.6mm
Length 10.6mm
Max. temperature +125°C
Min. temperature -55°C
Nominal Current 1.5A
Nominal Voltage 1000V
Width 95mm
