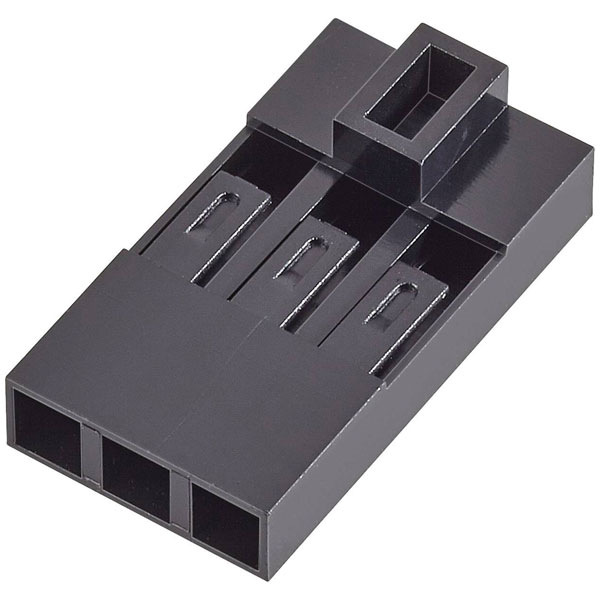

FCI 78211-003LF Mini-PV Socket Housing 3 Pins 2.54mm Spacing

Image Representative of Range

FCI 78211-003LF Mini-PV Socket Housing 3 Pins 2.54mm Spacing

FCI
Order Code:

03-0918

Brand: FCI MPN: 78211-003LF EAN-13: 2050003703130
Qty Unit Price (Ex VAT)
10+ £0.869
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
87 in stock, despatched in 4 working days

The product is manufactured by FCI and features a socket housing cable with a Mini-PV configuration. It includes three pins with a contact spacing of 2.54 mm. This component is typically used in electronic applications requiring reliable connectivity.
AWG (min.) 36
AWG max. 22
Case Material PPE
Connection Crimp
Connector contact surface Tin plated
Connector system wire-to-board
Connector Type Socket, straight
Contact Material Copper alloy
CS 2.54mm
Dim (L x W x H) 13.85 x 7.47 x 2.54 mm
Factory colour Blue
Height 2.54mm
Industrial packaging No
Insulation Material PPE
Length 13.85mm
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Dubox / PV / Bergstik
Nominal Voltage 1000V
Number of Rows 1
Pins per row 3
Series Mini-PV
Total number of pins 3
Type Socket housing cable
Width 7.47mm
