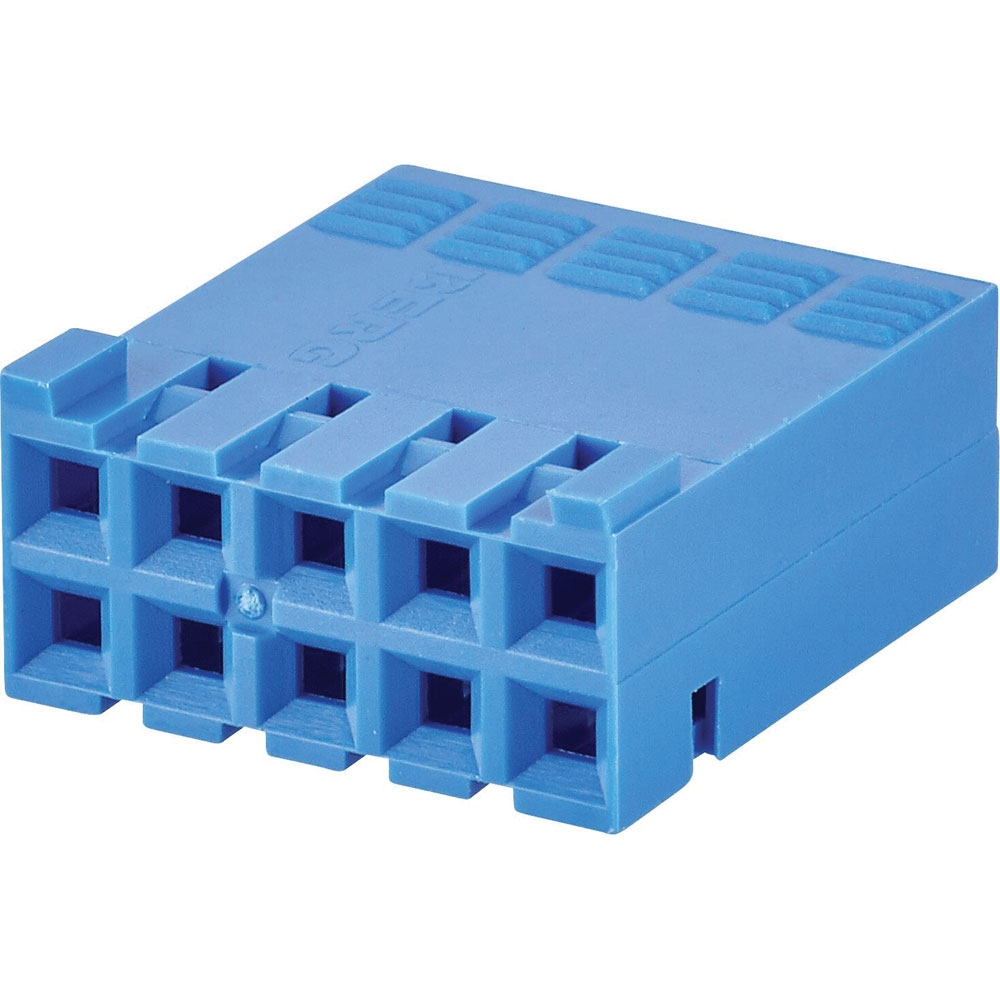

FCI 65239-010LF Mini-PV Socket Housing 20 Pins 2.54mm Spacing

Image Representative of Range

FCI 65239-010LF Mini-PV Socket Housing 20 Pins 2.54mm Spacing

FCI
Order Code:

03-0733

Brand: FCI MPN: 65239-010LF EAN-13: 2050003700191
Qty Unit Price (Ex VAT)
5+ £1.36
200+ £1.22
750+ £1.21
3000+ £1.20
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
82 in stock, despatched in 4 working days

FCI manufactures the Mini-PV socket housing cable with 20 pins and a contact spacing of 2.54 mm. This part is ideal for use in electronic circuits, ensuring reliable connectivity. It is commonly employed in electronic assemblies and equipment requiring precise connections.
Type Socket housing cable
Number of Rows 2
Case Material Thermoplastic UL94V-O
Connection Crimp
Connector contact surface Tin plated
Connector system wire-to-board
Connector Type Socket, straight
Contact Material Copper alloy
CS 2.54mm
Dim (L x W x H) 13.85 x 25.25 x 5.08 mm
Factory colour Blue
Height 5.08mm
Industrial packaging No
Insulation Material Thermoplastic UL94V-O
Length 13.85mm
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Dubox / PV / Bergstik
Pins per row 10
Series Mini-PV
Total number of pins 20
Width 25.25mm
