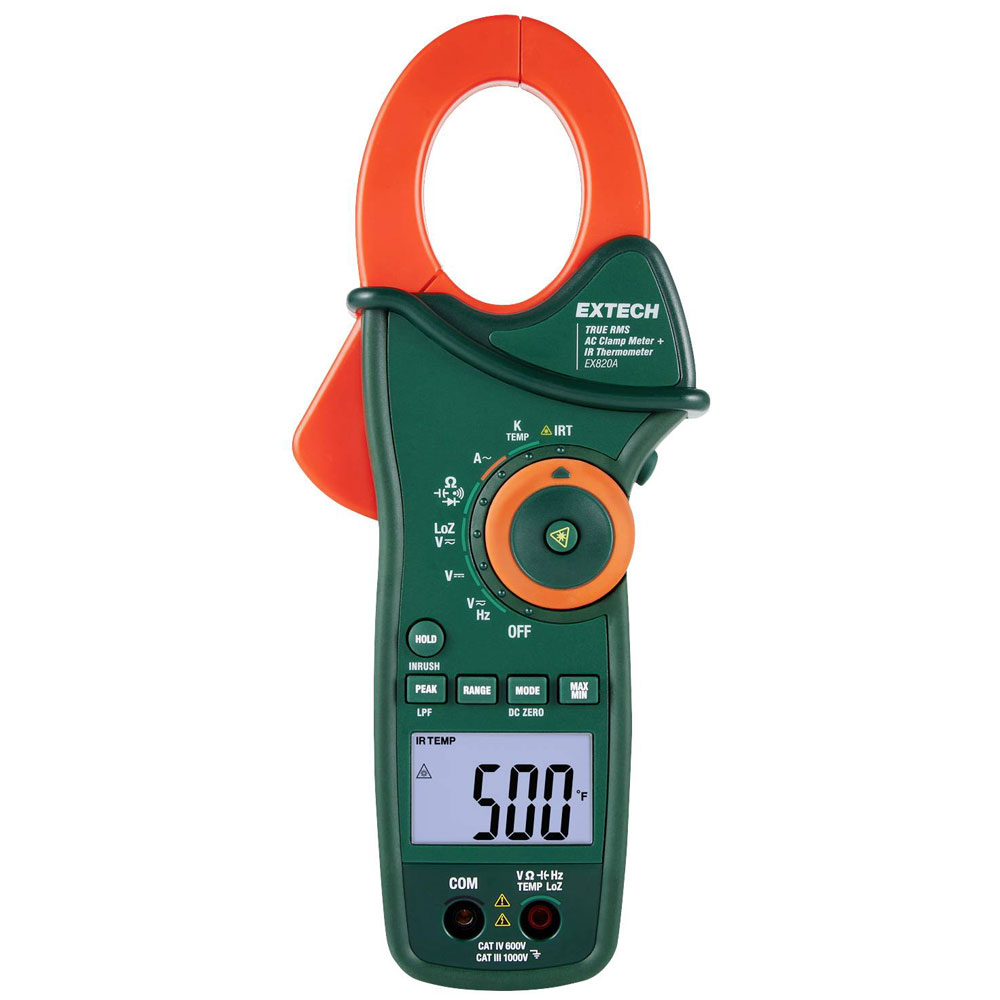

Extech's EX820A Clamp Meter features a 6000-count display and is equipped with a digital IR thermometer. It is designed for CAT IV 600 V applications, making it ideal for professional use in measuring voltage, current, and frequency. This multipurpose tester is perfect for electricians and technicians needing accurate voltage readings in diverse settings.
| Type |
Clamp meter |
| A AC reading range (min.) |
0.1A |
| Amperage reading range AC (max.) |
1000A |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Current reading |
AC |
| Dim |
(L x W x H) 50 x 110 x 270 mm |
| Display |
Digital |
| Display (counts) |
6000 |
| Displays |
4000 counts |
| Frequency Range |
50 - 60Hz |
| Frequency reading range |
0 -4000 kHz |
| Height |
270mm |
| Length |
50mm |
| Measurement type (details) |
True RMS |
| Misc Attribute |
Extech EX820A |
| Opening range of current clamps |
43mm |
| Power supply (details) |
9 V battery pack |
| Reading category |
CAT IV 600 V |
| Reading range - capacity |
0 - 40mF |
| Reading range - resistance |
0 - 40MΩ |
| Resolution |
0.1A |
| Temperature |
Infrared -50 to +270 |
| Temperature reading range (max.) |
+760°C |
| Temperature reading range (min.) |
-20°C |
| V AC reading range (max.) |
1000V |
| V AC reading range (min.) |
0.1mV |
| Voltage DC reading range (max.) |
1000V |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
0.1mV |
| Weight |
362g |
| Width |
110mm |
