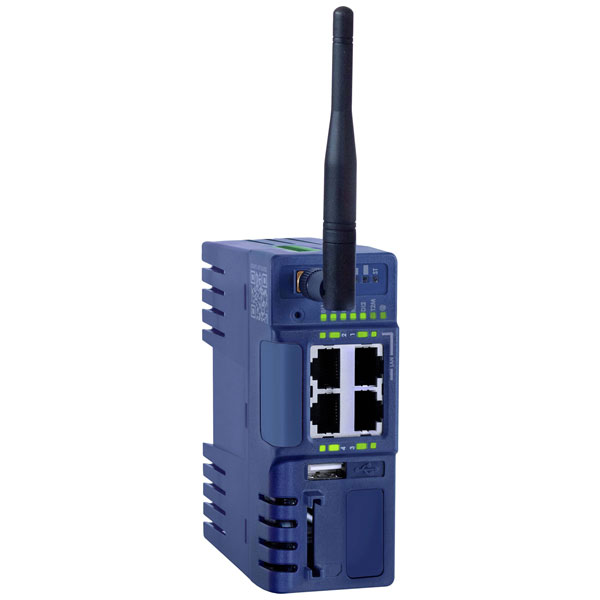

EWON EC7133J_00MA Cosy+ Router Wi-Fi/USB/Ethernet VPN 2 In 1 Out

HMS Networks manufactures the EWON EC7133J_00MA remote maintenance router, a versatile interface converter with Wi-Fi, USB, and Ethernet connectivity options. This device features inputs for 12 V DC and a single output for 24 V DC, making it ideal for secure remote management and monitoring applications. Typical applications include industrial automation systems, where the router provides seamless connectivity and remote access to modbus and canopen networks.

Type	Remote maintenance router
Current Consumption	175mA
Dim	(W x H) 43.60 mm x 108.80 mm
Height	108.80mm
I/O number	3
Inputs	0 to 24 V DC; 1.5 kV insulation
Interfaces	WAN Ethernet: Up to 3 ports, 10/100 MB EthernetLAN Ethernet: Up to 4 ports, 10/100 MB EthernetField interface: Up to 10 USB 2.0 connections, female connector 2.0
Max. current consumption	450mA
Max. operating temperature	60°C
Min. operating temperature	-25°C
Misc Attribute	HMS Industrial
Number of Inputs	2
Number of Outputs	1
Operating Temperature	-25 up to 60 °C
Operating Voltage	12-24 VDC +/-20% LPS
Outputs	1xDO: Open drain (MOSFET) 200mA; insulation 1.5kV
Plastic free packaging	Plastic-free packaging
Width	43.60mm
