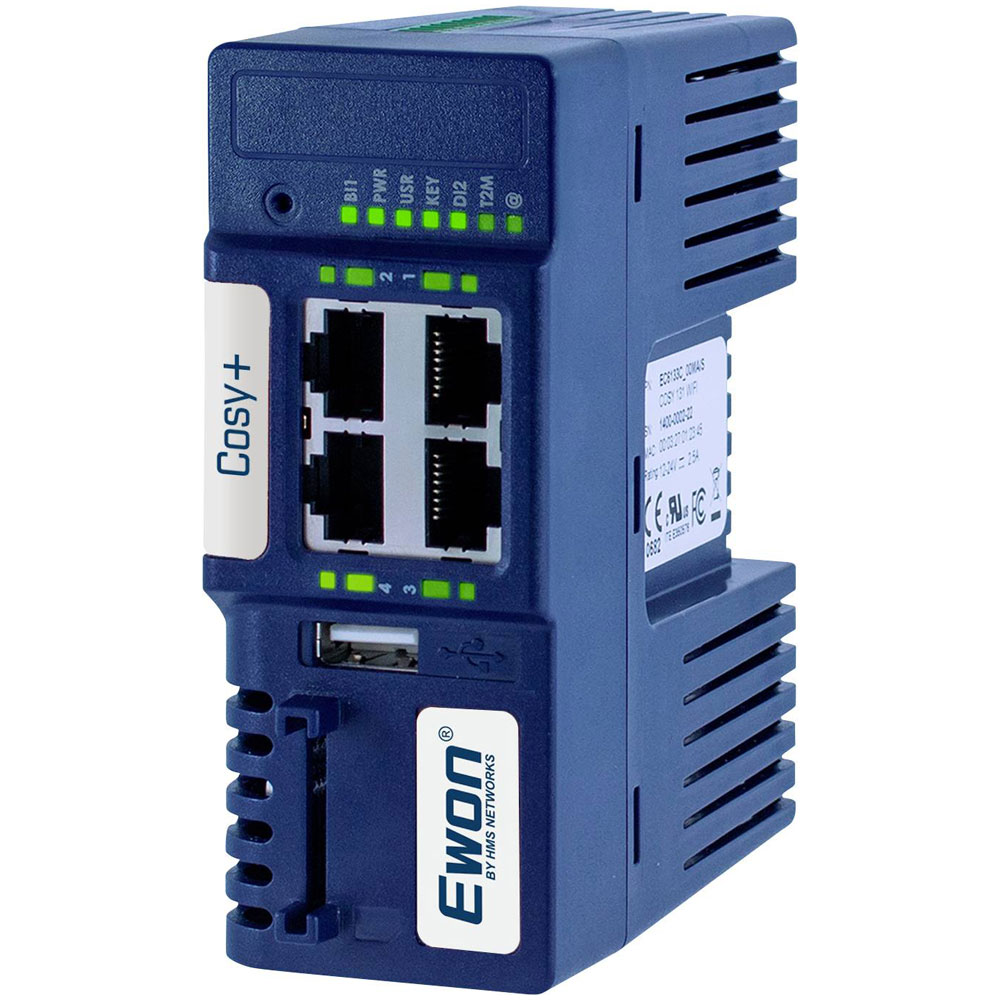

EWON EC71330_00MA Cozy+ VPN Gateway 1x Input 2x Output 24V/12V DC

EWON
Standard range
Order Code:

09-1213

Brand: EWON MPN: EC71330_00MA EAN-13: 2050007680710
Qty Unit Price (Ex VAT)
1+ £631.06
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
14 in stock, despatched in 4 working days

The EWON EC71330_00MA is a remote maintenance router designed for efficient Ethernet and USB connectivity. It features one input and two outputs operating at 24 V DC, with an additional 12 V DC power option. Typically used in modbus and CANopen interface conversions, this device supports seamless data gateways for industrial applications.
Type Remote maintenance router
Dim (W x H) 43.60 mm x 108.80 mm
Height 108.80mm
I/O number 3
Interfaces WAN Ethernet: Up to 3 ports, 10/100 MB EthernetLAN Ethernet: Up to 4 ports, 10/100 MB EthernetField interface: Up to 10 USB 2.0 connections, female connector 2.0
Manufacturer part # EC71330_00MA
Max. operating temperature 60°C
Min. operating temperature -25°C
Misc Attribute HMS Industrial
No. of inputs 1
No. of outputs 2
Operating Temperature -25 up to 60 °C
Operating voltage 12-24 VDC +/-20%, LPS.
Outputs 1xDO: open drain (MOSFET) 200mA; isolation 1.5kV;2xDI: 0 to 24VDC; 1.5 kV insulation.
Plastic free packaging Plastic-free packaging
Width 43.60mm
