Evolution XPC 301-031 20M Professional Analogue Audio Cable 1-Pair Black 20m

Order Code:


Brand: Evolution XPC  MPN: 301-031 20M
 Report an error
Qty Unit Price (Ex VAT)
1+ £15.24

Get a quote for large quantities here

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Contact us for lead times on larger quantities
Out of StockContact us for availability

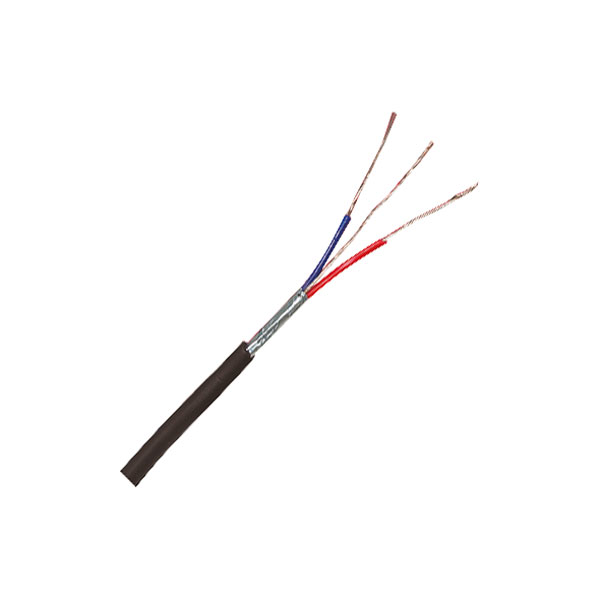

Buy Evolution XPC Professional Analogue Audio Cable 1-Pair Black 20m – designed for use where a small diameter balanced signal is required.

Incorporating the following features: single pair, 2 cores, 24AWG wire size, 7/0.2mm conductor stranding, 3.5mm cable diameter, 85R/km conductor resistance, 130pF/m (core/screen), 85pF/m (core/core) capacitance, oxygen free copper conductor material, PVC/neoprene jacket material, -30°C to +70°C, XPLE cross lined polythene insulation material, aluminium foil screen, high specification installation cable, designed for use where a small diameter balanced signal is required, suitable for interack wiring or patch bay termination.

  • Suitable for inter-rack wiring or patch bay termination
  • High specification installation cable
  • 24AWG OFC XLPE conductors are twisted together with a drain wire and then screened in an aluminium foil for 100% coverage
  • Foil screen is then bonded to the overall PVC/neoprene jacket for one strip preparation
  • Cable diameter 3.5mm
  • 7/0.2mm conductor stranding
  • Colour: black
  • Supplied in 20m lengths
Cable Diameter 3.5mm
Cable Diameter (AWG) 24AWG
Capacitance 130pF/m
Colour Black
Conductor Area 0.22mm²
Conductor Material Oxygen free copper
Conductor Resistance 85Ω/km
Conductor Stranding 7/0.20mm
Conductor Stranding (AWG/Strands) 24/7AWG
Length 20m
Number of Cores 1 pair

To use this facility please Sign In. Alternatively use our Quotation page.

Sign In


Great for headphone replacement

Reviewed by: Chris Ambler - 15 December 2018
This has worked brilliantly to restore some feeble cable on some headphones used in a local school. I expect it will also perform well when used to restore higher end products. Will buy again if needed.
