Escha AL-SKP3-2/S370 Durable Connector for Secure Data Transmission

Escha
Extended range
Order Code:

11-7696

Brand: Escha MPN: 8043748 EAN-13: 2050001553461
Qty Unit Price (Ex VAT)
1+ £10.41
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 10 weeks

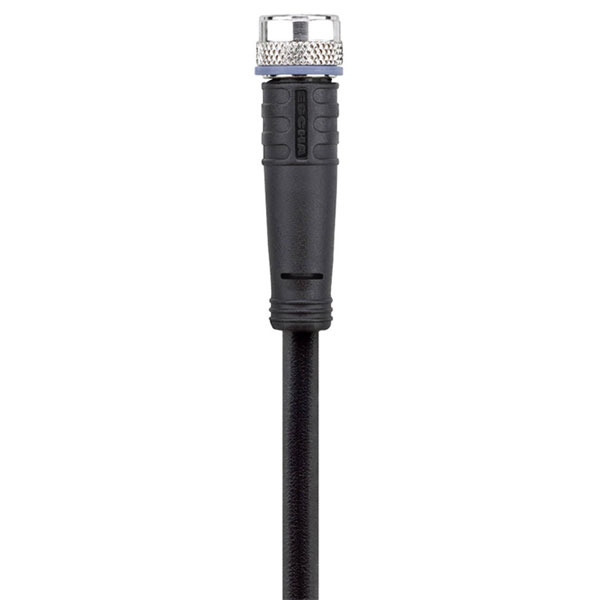

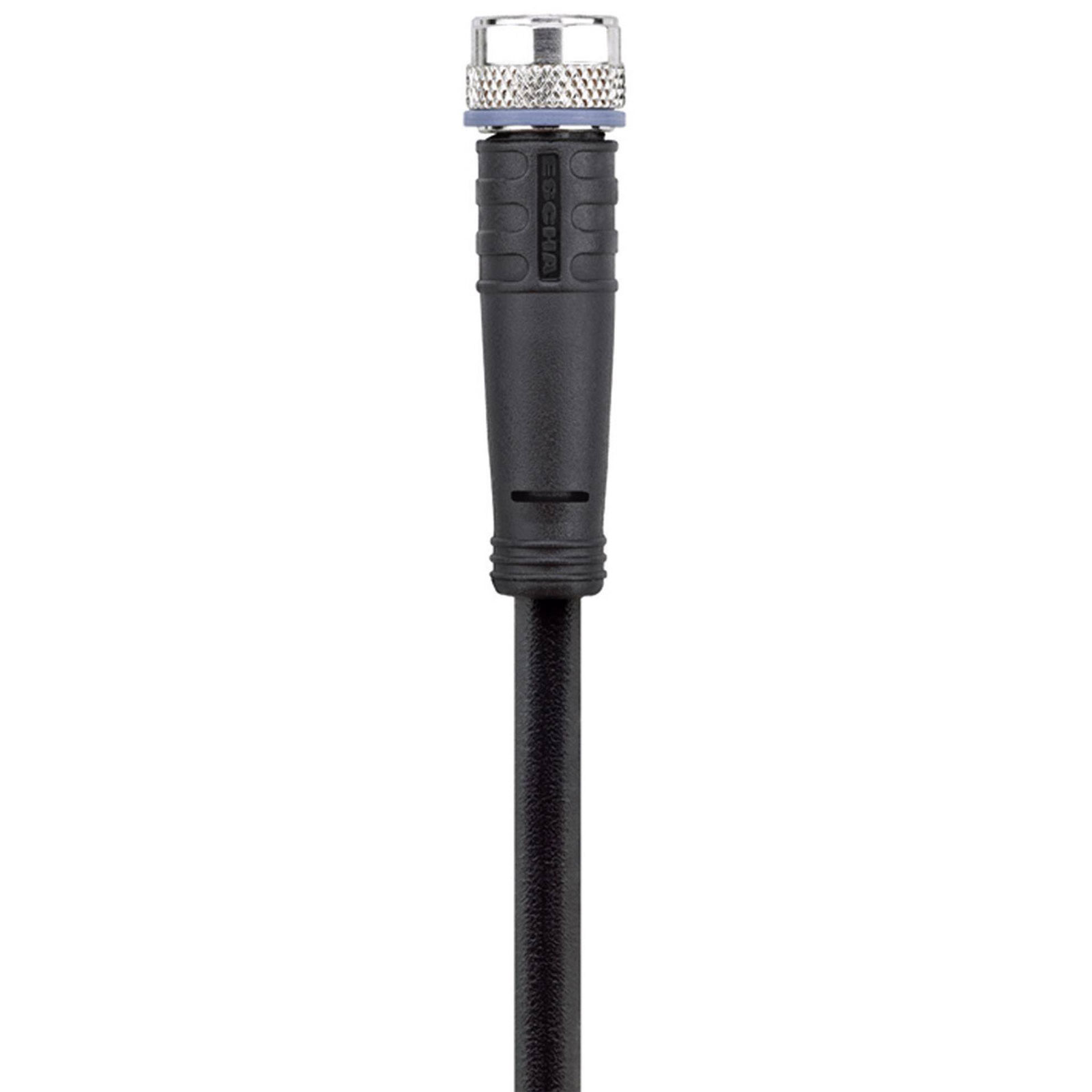

The Escha sensor/actuator connector 8043748 AL-SKP3-2/S370 features a pre-fabricated design for easy installation. It is typically used in automation applications to connect sensors or actuators to control systems. This connector ensures reliable signal transmission and robust performance in demanding environments.
Type Sensor/actuator connector (pre-fab)
Cable colour Black
Cable length 2.00m
Coding A
Connection Open end cable
Connection side A Cable, open end
Connection side B Customisable
Connector standard Sensor connector
Connector type Socket, straight
Contact material CuSn
Contact surface Gold plated
Cross-section (sensor/actuator wiring) 0.25mm²
IP rating IP67/IP69K
Jacket material PUR
Max. temperature +90°C
Min. temperature -30°C
Misc Attribute AL-SKP3-2/S370
No. of pins 3
Nominal current 4A
Nominal current - rounded value 4A
Nominal voltage 60V
RoHS-compliant Yes
Seal type Screw-on
Thread type connection side M8
