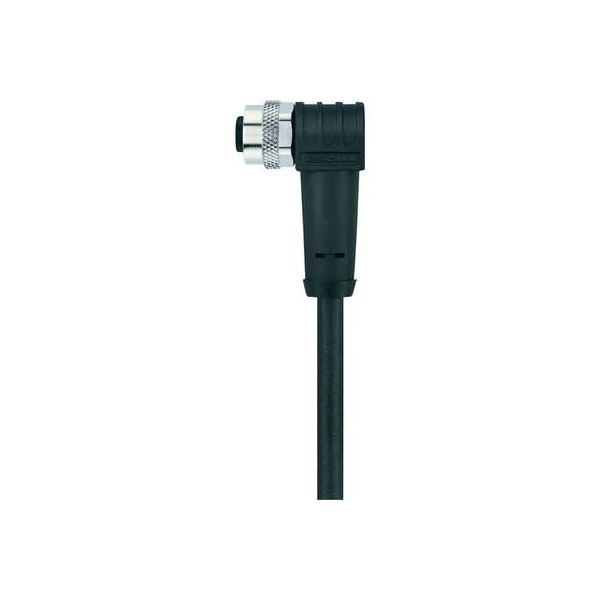

Escha 8047005 AL-WWAKS12-5/S370 Flexible Oil & Flame-Resistant Cable

Escha
Standard range
Order Code:

11-7769

Brand: Escha MPN: 8047005 EAN-13: 2050001545138
Qty Unit Price (Ex VAT)
1+ £42.92
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
16 in stock, despatched in 4 working days

The Escha 8047005 AL-WWAKS12-5/S370 is a sensor/actuator connector designed for robust industrial use. It features pre-fabrication for easy installation and reliable performance. Typical applications include automated systems and machinery connections.
Type Sensor/actuator connector (pre-fab)
Cable length 5.00m
Coding A
Connection Open end cable
Connection side A Cable, open end
Connection side B Customisable
Connector standard Sensor connector
Connector type Socket, right angle
Contact material CuSn
Contact surface Gold plated
Cross-section (sensor/actuator wiring) 0.14mm²
IP rating IP67/IP69K
Jacket material PUR
Manufacturer part # 8047005
max. cross section 0.14mm²
Max. temperature +90°C
Min. temperature -30°C
Misc Attribute AL-WWAKS12-5/S370
No. of pins 12
Nominal current 1.50A
Nominal current - rounded value 1.5A
Nominal voltage 30V
RoHS-compliant Yes
Seal type Screw-on
Thread type connection side M12
