Escha 8046994 AL-WWAKS8-5/S370 Flexible Flame-Resistant PVC Control Cable

Escha
Standard range
Order Code:

11-7766

Brand: Escha MPN: 8046994 EAN-13: 2050001552570
Qty Unit Price (Ex VAT)
1+ £31.72
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
14 in stock, despatched in 4 working days

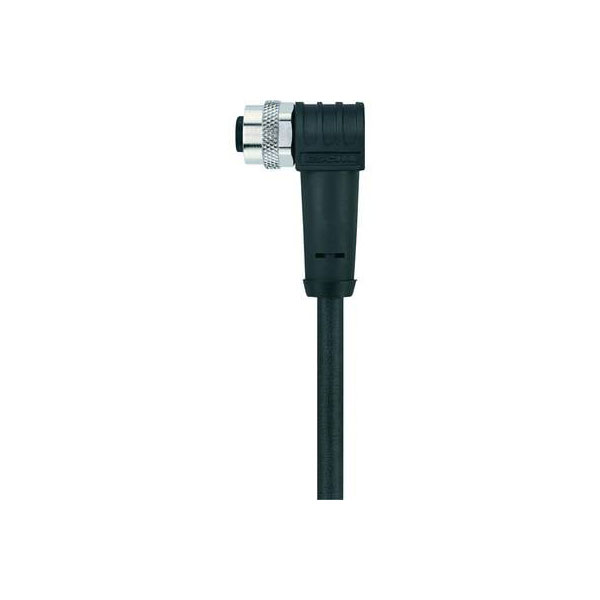

Escha manufactures the 8046994 AL-WWAKS8-5/S370, a sensor/actuator connector. It features a pre-fabricated design for easy and reliable connections. Typically used in industrial automation, it ensures efficient signal transmission.
Type Sensor/actuator connector (pre-fab)
Cable length 5.00m
Coding A
Connection Open end cable
Connection side A Cable, open end
Connection side B Customisable
Connector standard Sensor connector
Connector type Socket, right angle
Contact material CuSn
Contact surface Gold plated
Cross-section (sensor/actuator wiring) 0.25mm²
IP rating IP67/IP69K
Jacket material PUR
max. cross section 0.25mm²
Max. temperature +90°C
Min. temperature -30°C
Misc Attribute AL-WWAKS8-5/S370
No. of pins 8
Nominal current 2A
Nominal current - rounded value 2A
Nominal voltage 30V
RoHS-compliant Yes
Seal type Screw-on
Thread type connection side M12
