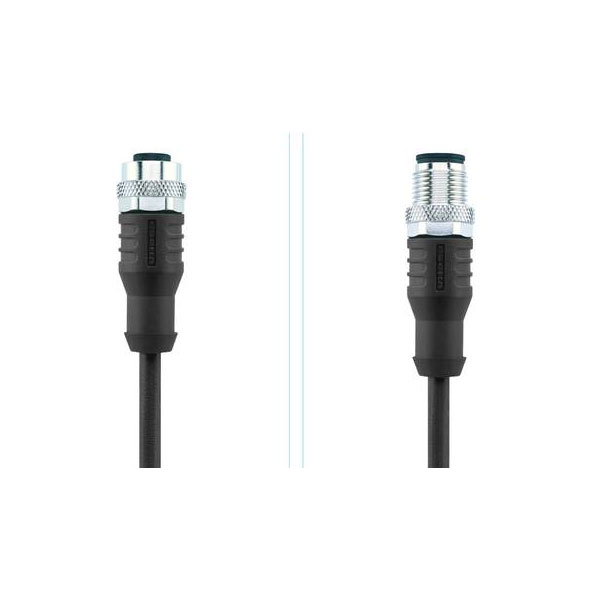

Escha 8046968 AL Series Connector M12 Male-Female, Waterproof, Shielded

Escha
Standard range
Order Code:

11-7763

Brand: Escha MPN: 8046968 EAN-13: 2050001554321
Qty Unit Price (Ex VAT)
1+ £38.62
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
12 in stock, despatched in 4 working days

The Escha 8046968 AL-WAKS8-2-AL-WASS8/S370 is a pre-fabricated sensor/actuator connector. It is designed for reliable connections in industrial automation systems. Typical applications include use in machinery and process control environments.
Type Sensor/actuator connector (pre-fab)
Cable colour Black
Cable length 2.00m
Coding A
Connection side A M12 plug, straight
Connection side B M12 plug, straight
Connector standard Sensor connector
Contact material CuSn
Contact surface Gold plated
Cross-section (sensor/actuator wiring) 0.25mm²
IP rating IP67/IP69K
Jacket material PUR
max. cross section 0.25mm²
Max. temperature +90°C
Min. temperature -30°C
Misc Attribute AL-WAKS8-2-AL-WASS8/S370
No. of pins 8
Nominal current 2A
Nominal current - rounded value 2A
Nominal voltage 30V
RoHS-compliant Yes
Seal type Screw-on
Thread type connection side M12
