Escha 8046282 AL-WAKS4-2 Compact Connector Series IP67 M8 4-Pin

Escha
Standard range
Order Code:

11-7745

Brand: Escha MPN: 8046282 EAN-13: 4064161264486
Qty Unit Price (Ex VAT)
1+ £33.45
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

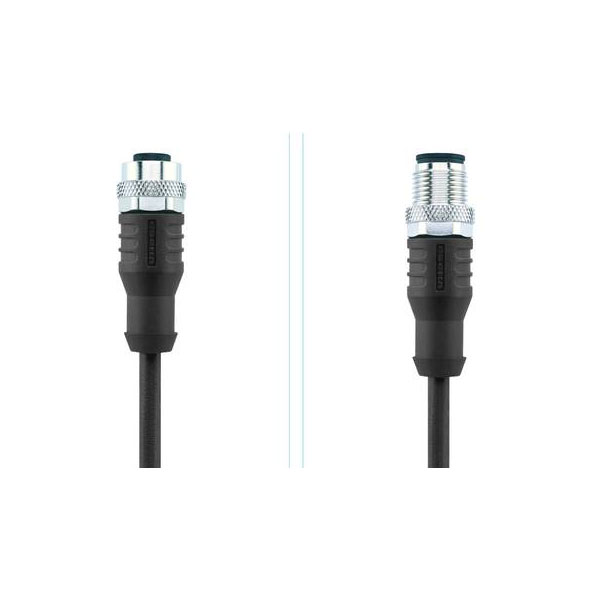

Escha manufactures sensor/actuator connectors, such as the 8046282 AL-WAKS4-2-AL-WASS4/S370. This pre-fabricated connector boasts robust construction ideal for industrial environments. It is commonly used to facilitate reliable connections between sensors, actuators, and control systems.
Type Sensor/actuator connector (pre-fab)
Cable colour Black
Cable length 2.00m
Coding A
Connection side A M12 plug, straight
Connection side B M12 plug, straight
Connector standard Sensor connector
Contact material CuSn
Contact surface Gold plated
Cross-section (sensor/actuator wiring) 0.34mm²
IP rating IP67/IP69K
Jacket material PUR
max. cross section 0.34mm²
Max. temperature +90°C
Min. temperature -30°C
Misc Attribute AL-WAKS4-2-AL-WASS4/S370
No. of pins 4
Nominal current 4A
Nominal current - rounded value 4A
Nominal voltage 250V
RoHS-compliant Yes
Seal type Screw-on
Thread type connection side M12
