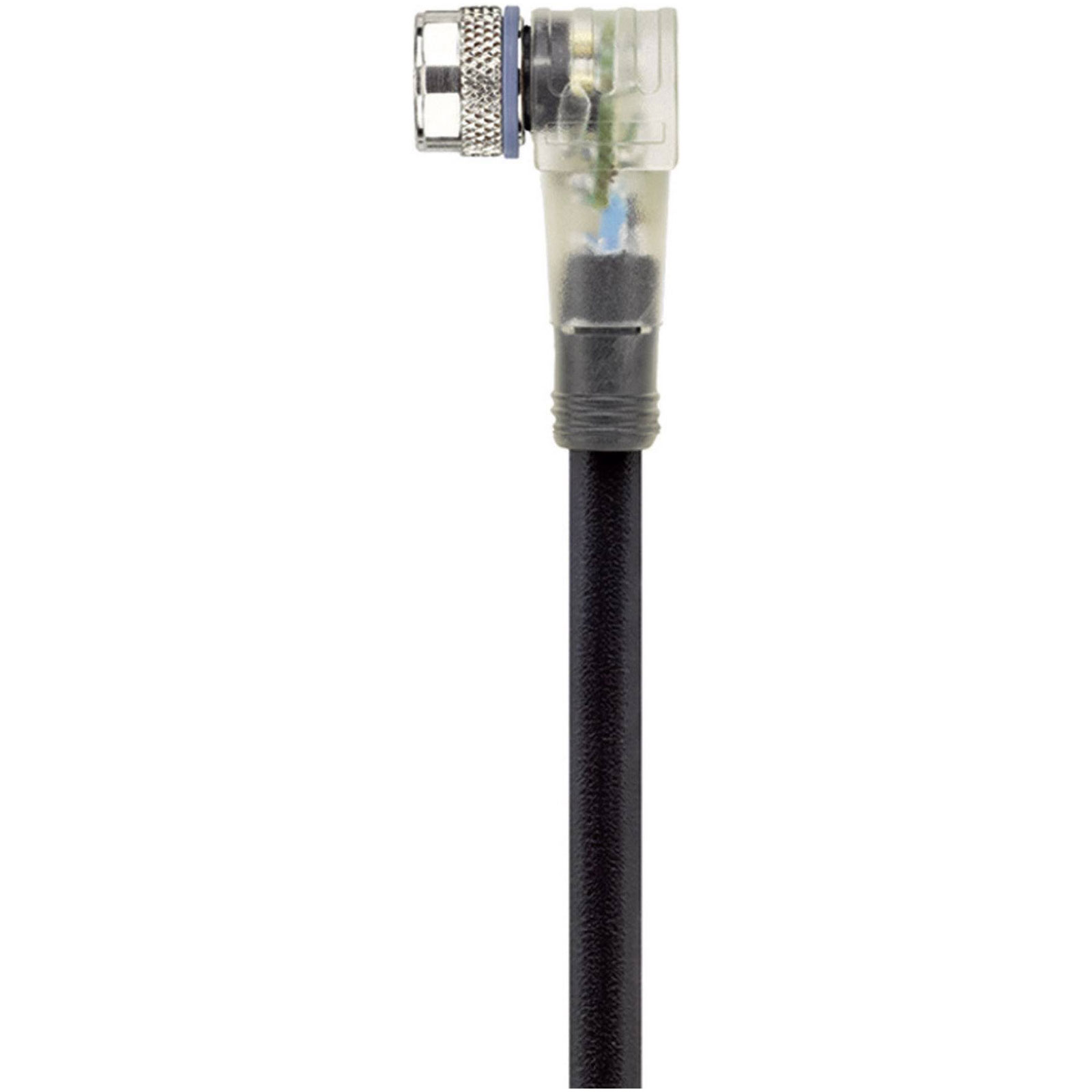

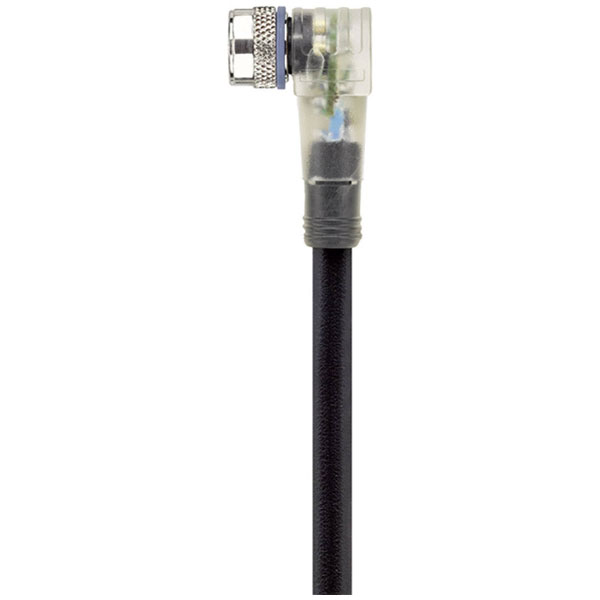

Escha 8045344 AL-SWKP3P2-2/S370 Actuator: Compact, Durable, IP67

Escha
Standard range
Order Code:

11-7733

Brand: Escha MPN: 8045344 EAN-13: 2050001553430
Qty Unit Price (Ex VAT)
1+ £14.97
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

Escha manufactures the 8045344 AL-SWKP3P2-2/S370, a sensor/actuator connector with pre-fabricated design. This connector is known for its robustness and reliable connections in industrial environments. It is typically used in automation systems to interface sensors and actuators efficiently.
Type Sensor/actuator connector (pre-fab)
Cable colour Grey
Cable length 2.00m
Coding A
Connection Open end cable
Connection side A Cable, open end
Connection side B Customisable
Connector standard Sensor connector
Connector type Socket, right angle
Contact material CuSn
Contact surface Gold plated
Cross-section (sensor/actuator wiring) 0.25mm²
IP rating IP67/IP69K
Jacket material PUR
Max. temperature +90°C
Min. temperature -30°C
Misc Attribute AL-SWKP3P2-2/S370
No. of pins 3
Nominal current 4A
Nominal current - rounded value 4A
Nominal voltage 60V
RoHS-compliant Yes
Seal type Screw-on
Thread type connection side M8
